Land Loading Arms for Truck & Rail Transfer
Custom Top and Bottom Loading Arm Solutions for Truck and Rail Tankers, Designed for Diverse Fluids, Operating Conditions, and Terminal Requirements.

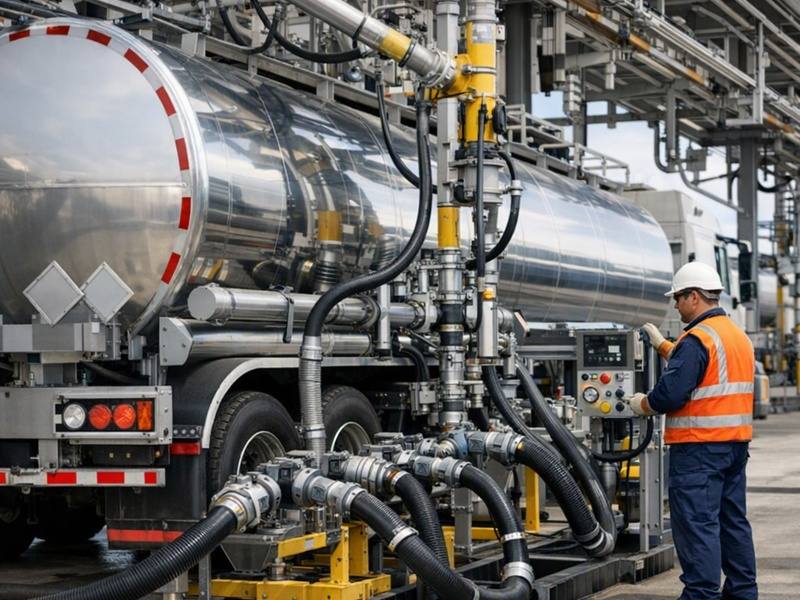

Land Loading Arm Product Overview
Teampower designs and manufactures Land Loading Arms for the controlled transfer of industrial liquids and suitable process media between terminal systems and road or rail tankers. Our product range includes Top Loading Arms, Bottom Loading Arms, Cryogenic & LNG Loading Arms, PTFE Lined Loading Arms, Heated Loading Arms, and Automatic Loading Arms.
Whether you are upgrading an existing loading terminal or planning a new bulk transfer facility, we provide custom-engineered loading arm solutions based on your transfer medium, operating conditions, vehicle interface, site layout, and automation requirements.
Discuss your project with our engineering team to identify a suitable loading configuration for your facility.
Land Loading Arm Solutions for Different Operating Conditions
Different loading operations require different arm configurations. Top and bottom loading arms define the loading arrangement, while cryogenic, PTFE-lined, heated, and automatic configurations address specific media, temperature, or operating requirements. The final design depends on the application and the available equipment options.
Top Loading Arm
A Top Loading Arm connects to a tanker through its top hatch or designated filling connection. It is suitable for loading arrangements where overhead access is available and the vehicle and facility are designed for top loading.
Teampower's top loading solutions can be configured for truck and rail tanker operations. Depending on the project, engineering considerations may include arm reach, drop tube arrangement, swivel joint movement, balancing mechanisms, vapor control, and operator access.
Top loading is worth considering when the existing terminal infrastructure or tanker design requires access from above.
Bottom Loading Arm
A Bottom Loading Arm connects to a compatible tanker connection at ground level or near the vehicle's lower manifold. This arrangement can reduce the need for operators to access the top of the tanker and is commonly considered for high-throughput petroleum and chemical loading terminals.
Depending on the system design, bottom loading equipment can be integrated with vapor return lines, metering equipment, overfill protection, and loading control systems.
Before selection, confirm tanker manifold compatibility, connection dimensions, required flow rate, operating pressure, and the terminal's vapor management arrangements.
Cryogenic & LNG Loading Arm
Cryogenic Loading Arms are designed for transferring liquefied gases and other media at specified low temperatures. These applications require careful engineering of low-temperature materials, sealing components, swivel joints, thermal insulation, and operating procedures.
For LNG and other cryogenic services, the selected configuration must be suitable for the actual design temperature, pressure, medium, and transfer conditions. Purging, pre-cooling, emergency shutdown, and release protection should be evaluated where required by the project.
Teampower offers specialized cryogenic loading arm solutions for industrial fluid transfer applications.
PTFE Lined Loading Arm
A PTFE Lined Loading Arm is designed for applications involving compatible corrosive liquids and aggressive chemicals. The lining provides a protective barrier between the process medium and the underlying structural material.
Selection should consider chemical composition, concentration, temperature, pressure, permeation limits, and the compatibility of all wetted components. The suitability of PTFE lining must be verified for the specific chemical and operating conditions rather than assumed for every corrosive medium.
Both top and bottom loading arrangements may be considered according to the required configuration and project scope.
Heated Loading Arm
A Heated Loading Arm helps maintain the required transfer temperature for viscous fluids or materials that may solidify, crystallize, or lose flowability during transfer.
Depending on the equipment design and facility utilities, heating may use steam jacketing or electrical heat tracing. Insulation and temperature monitoring can also be considered to manage heat loss and maintain suitable operating conditions.
Typical applications may include bitumen, asphalt, heavy oils, and molten sulfur, subject to the fluid properties and the manufacturer's technical recommendations.
The heating method should be selected according to the medium's viscosity, required transfer temperature, ambient conditions, and available energy source.
Automatic Loading Arm
An Automatic Loading Arm supports projects that require automated positioning and more consistent loading operations. Teampower's automatic loading arm product information describes a system incorporating industrial vision positioning, PLC-based control, and powered movement to help align the arm with the designated tanker loading point.
Depending on the model and project configuration, automation may be integrated with metering, loading controls, position monitoring, and selected safety interlocks.
The required automation level should be defined early in the project. Buyers should confirm vehicle compatibility, operating range, control interfaces, and the functions included in the proposed system.
Custom Land Loading Arm Configuration
A suitable custom Land Loading Arm starts with the actual process requirements rather than a standard arm dimension. Teampower can evaluate the operating conditions, vehicle interfaces, installation space, and system integration needs to develop a configuration for the intended application.
Transfer Medium and Material Compatibility
The transfer medium determines the material requirements for the arm piping, seals, swivel joints, lining, and other wetted components. Chemical services may require corrosion-resistant materials or PTFE lining, while cryogenic and heated applications require materials and components suited to their specified temperature ranges.
Provide the chemical name or fluid specification whenever possible, including concentration and any relevant contamination considerations.
Operating Temperature, Pressure, and Flow Rate
The arm must be designed for the intended operating envelope. Important parameters include normal and design temperature, operating and design pressure, required flow rate, fluid viscosity, and transfer frequency.
These details help determine the appropriate piping arrangement, component ratings, heating or insulation requirements, and connection design.
Reach, Movement, and Vehicle Interface
The loading arm's horizontal reach, vertical movement, rotation range, parking position, and connection height must match the loading bay and vehicle geometry.
For truck and rail tanker projects, the engineering review should consider vehicle dimensions, loading point locations, approach clearances, and the available operating envelope. Customized arm geometry can help accommodate site constraints and reduce interference with adjacent equipment.
Automation and Control Integration
Facilities may require manual operation, assisted positioning, or a higher level of automation. The selected system can be evaluated for compatibility with PLC controls, metering equipment, position feedback, loading sequences, and plant control interfaces.
The scope should clearly identify which control functions and accessories are included in the final supply.
Safety and Environmental Requirements
Safety provisions should be selected according to the medium, terminal operating procedures, vehicle interface, and applicable project requirements.
Depending on the application, these may include closed loading arrangements, vapor recovery, emergency release protection, grounding monitoring, overfill protection, and suitable tanker access equipment.
Each function should be specified and verified as part of the overall system design.
Discuss Your Land Loading Arm
Share your transfer medium, loading mode, site layout, and automation needs for your Land Loading Arm project. Specify if you require Top Loading Arm, Bottom Loading Arm, closed loading systems, or VRU integration. Our engineers provide tailored Bulk & OEM solutions.
Integrated Safety, Accessories, and Control Systems
A loading arm operates as part of a wider fluid transfer system. Correctly selected accessories and control interfaces help coordinate the connection, movement, transfer, and disconnection stages.
Swivel Joints
A Breakaway Coupling is designed to separate under specified conditions if an abnormal pulling force occurs, helping limit damage and fluid release when properly selected and integrated.
The coupling must match the transfer medium, pressure rating, connection arrangement, and expected mechanical loads. It should form part of a coordinated safety design, not be treated as a replacement for vehicle restraint, operating procedures, or emergency shutdown functions.
Breakaway Coupling
A Breakaway Coupling is designed to separate under specified conditions if an abnormal pulling force occurs, helping limit damage and fluid release when properly selected and integrated.
The coupling must match the transfer medium, pressure rating, connection arrangement, and expected mechanical loads. It should form part of a coordinated safety design, not be treated as a replacement for vehicle restraint, operating procedures, or emergency shutdown functions.
Tanker Access & Loading Racks
Top loading operations may require loading racks, folding stairs, platforms, walkways, and fall-protection provisions suited to the site and vehicle geometry. These components should be coordinated with the arm's reach and parking position to provide safe access and an efficient operating workflow.
Closed Loading & Vapor Recovery
For volatile products, closed loading systems and vapor recovery arrangements can help control displaced vapors and reduce emissions during transfer. The appropriate configuration depends on the fluid properties, tanker connections, loading method, terminal recovery capacity, and applicable environmental requirements.
Vapor recovery equipment should be designed as part of the transfer system rather than added without checking interface and operating compatibility.
Metering & Automated Control
Metering and control systems can support batch loading, flow measurement, operating sequence management, and centralized monitoring. Their configuration should match the facility's required accuracy, control architecture, and safety functions.
For projects involving automated positioning, the arm, vehicle interface, control equipment, and safety interlocks should be assessed as one coordinated system.
Land Loading Arm Applications
Teampower's land loading arm systems are intended for a range of industrial transfer operations. The final configuration depends on the product being handled, the transport vehicle, the terminal layout, and the required operating and safety functions.
Application
Main Requirements
Configuration to Evaluate
Road tanker loading
Vehicle connection compatibility, operating reach, loading rate, and safe access
Top or bottom loading arm
Rail tankcar transfer
Railcar geometry, loading point position, trackside clearance, and movement range
Customized top or bottom loading arrangement
Petrochemical & chemical terminals
Chemical compatibility, sealing, temperature and pressure limits, and vapor control
Standard or PTFE-lined loading arm, subject to medium
LNG and cryogenic transfer
Low-temperature material suitability, thermal management, and emergency procedures
Cryogenic & LNG loading arm
Viscous fluid transfer
Required transfer temperature, heat loss, and fluid flowability
Heated loading arm
High-throughput loading facilities
Repeatable operation, metering, loading sequences, and control integration
Bottom loading or automatic loading configuration, as appropriate
Why Choose Teampower for Land Loading Arms?
Teampower specializes in industrial fluid loading and unloading equipment and integrated control systems. Founded in 2005, the company provides loading arm products and engineering services for applications involving terminals, petrochemical facilities, and LNG-related operations.
A Range of Loading Arm Configurations
Our product portfolio covers Top Loading Arms, Bottom Loading Arms, Cryogenic & LNG Loading Arms, PTFE Lined Loading Arms, Heated Loading Arms, and Automatic Loading Arms. This allows buyers to evaluate different loading methods and application-specific configurations through one equipment provider.
Custom Engineering for Site Requirements
Every terminal has its own vehicle interfaces, operating conditions, and spatial constraints. Customized reach, connection arrangements, material selection, and control integration can be evaluated according to the project requirements.
Integrated Equipment and Controls
Loading arms can be specified alongside relevant accessories, metering equipment, and control systems. This coordinated approach helps align the mechanical equipment with the wider transfer process.
Service and Spare Parts Support
Long-term equipment performance depends on suitable inspection, maintenance, and component replacement. Teampower provides support for loading arm systems and related components, including swivel joints and selected accessories, according to the agreed service scope.
Land Loading Arm Customization Process
Our customization process follows four practical stages to help define the correct equipment configuration before production.
Step 1: Project Requirement Review
Share the transfer medium, flow rate, operating temperature and pressure, loading method, vehicle type, and site layout. Our team reviews the available information to identify the main engineering requirements.
Step 2: Technical Configuration
The proposed configuration is developed around the required arm geometry, connection interfaces, material compatibility, and operating range. Where needed, the review also covers vapor recovery, heating or insulation, automation, and safety accessories.
Step 3: Specification and Quotation Confirmation
The proposed scope, technical parameters, accessories, control interfaces, and commercial details are reviewed with the customer. Any project-specific requirements should be resolved before the order is finalized.
Step 4: Manufacturing and Project Support
Following confirmation, the equipment proceeds according to the agreed manufacturing and delivery plan. Inspection, documentation, installation support, or other project services should be defined in the confirmed scope of supply.
Land Loading Arm Product Center
The Land Loading Arm Product Center provides engineers and procurement managers with a comprehensive gateway to compare fluid transfer solutions. Featuring Top Loading Arm, Bottom Loading Arm, Cryogenic & LNG Loading Arm, PTFE Lined Loading Arm, Heated Loading Arm, and Automatic Loading Arm, this platform enables efficient evaluation based on loading method, media condition, automation requirements, and customization potential.
Request a Custom Land Loading Arm Solution
Looking for a Land Loading Arm manufacturer for a new terminal, an equipment replacement, or a system upgrade?
Teampower provides loading arm products and custom engineering support for truck and rail tanker transfer, petroleum and chemical handling, cryogenic applications, and temperature-sensitive fluids.
Share your transfer medium, operating conditions, loading method, site layout, and control requirements. Our team can review the project scope and discuss a suitable Land Loading Arm configuration and quotation.
Contact Teampower to discuss your loading arm project.
