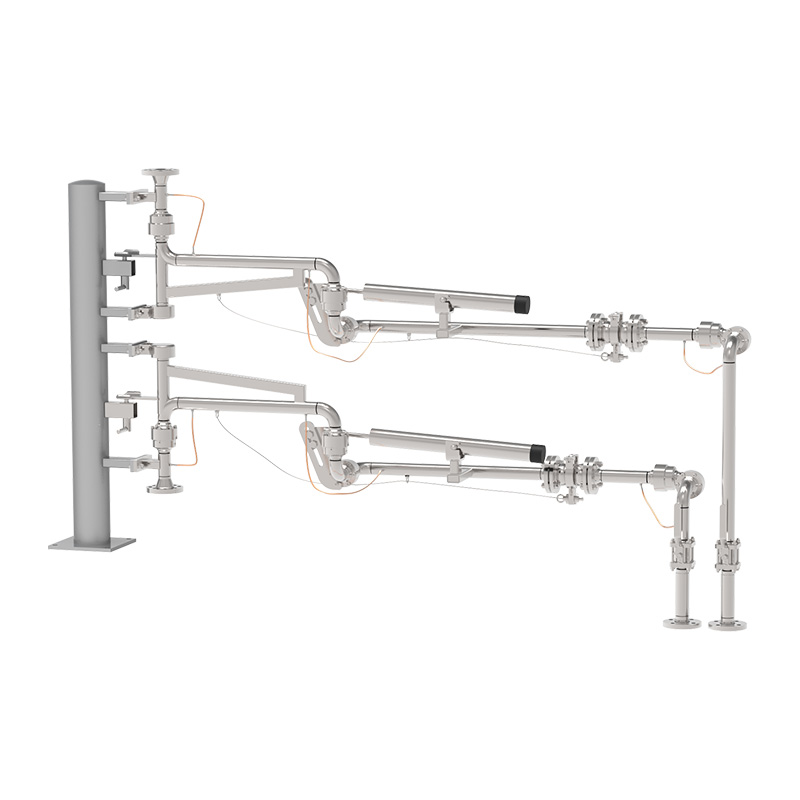

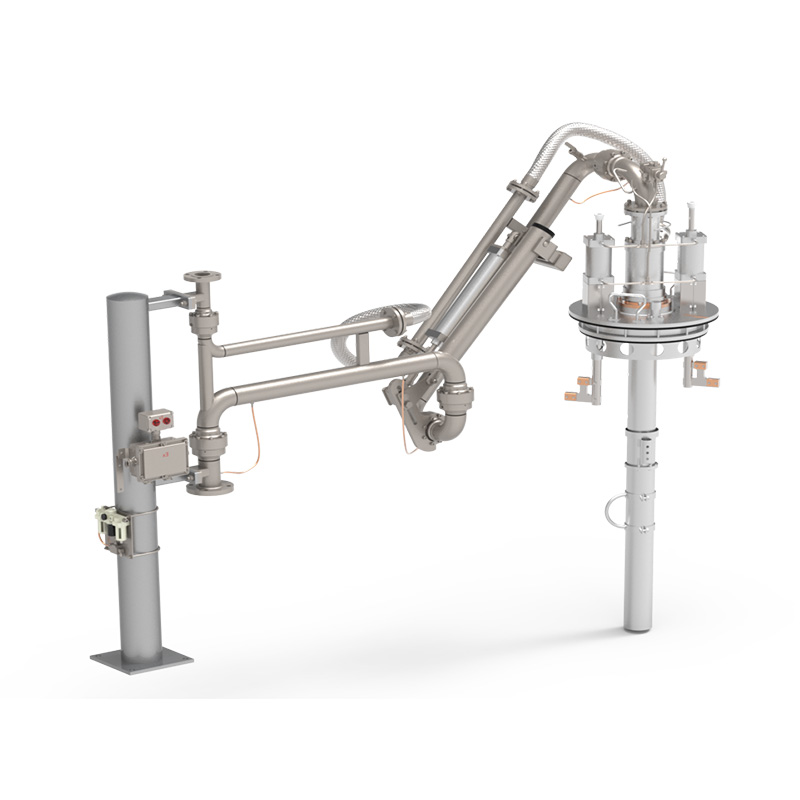

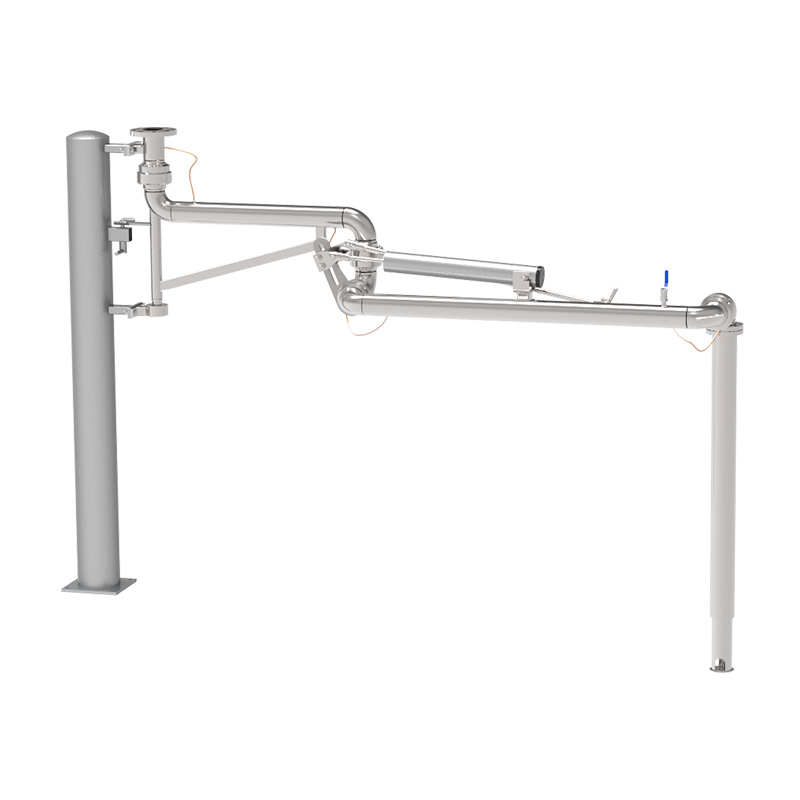

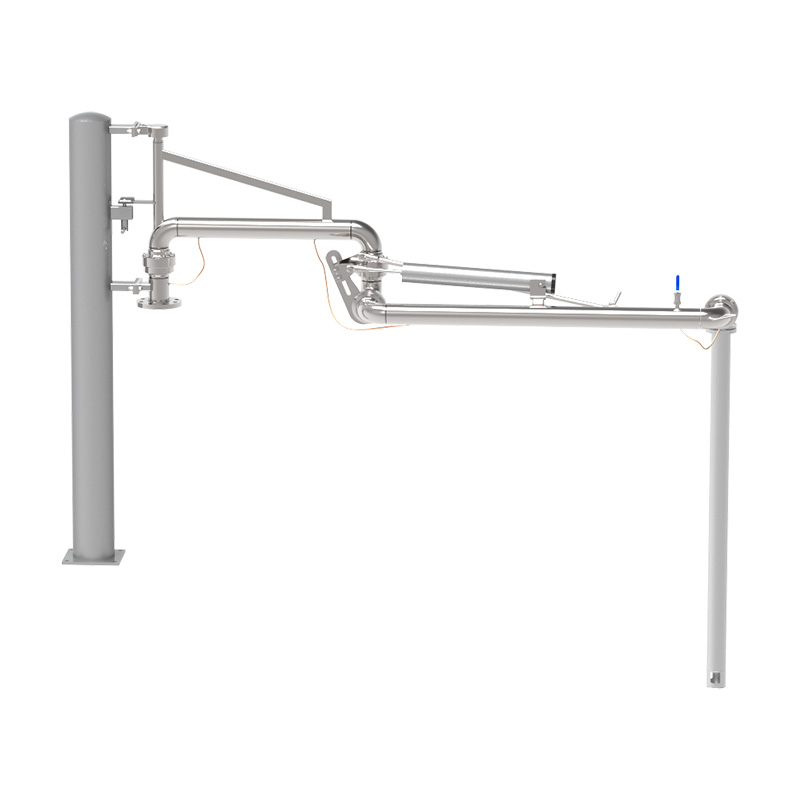

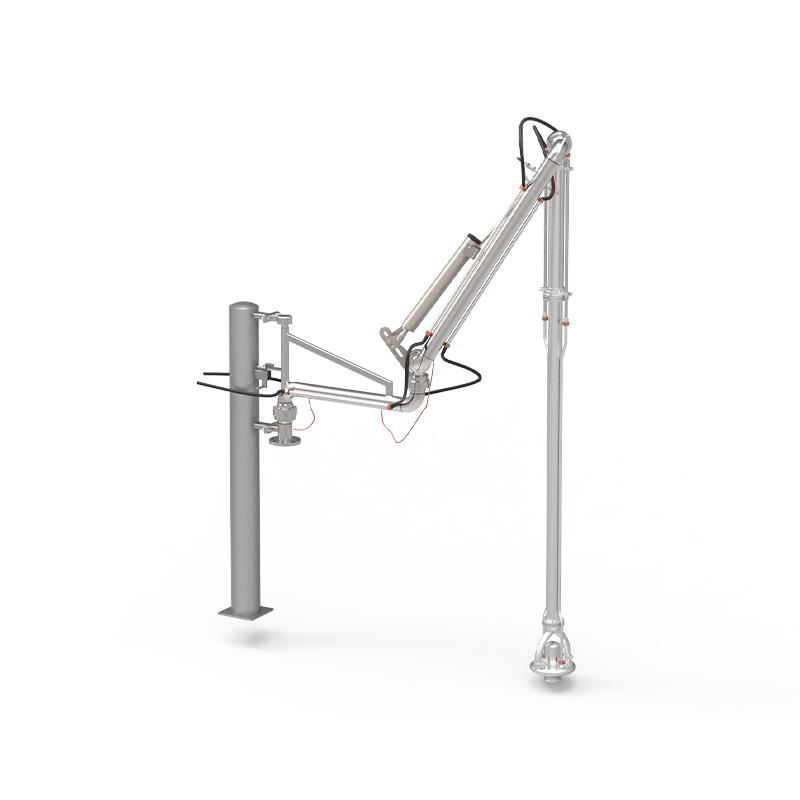

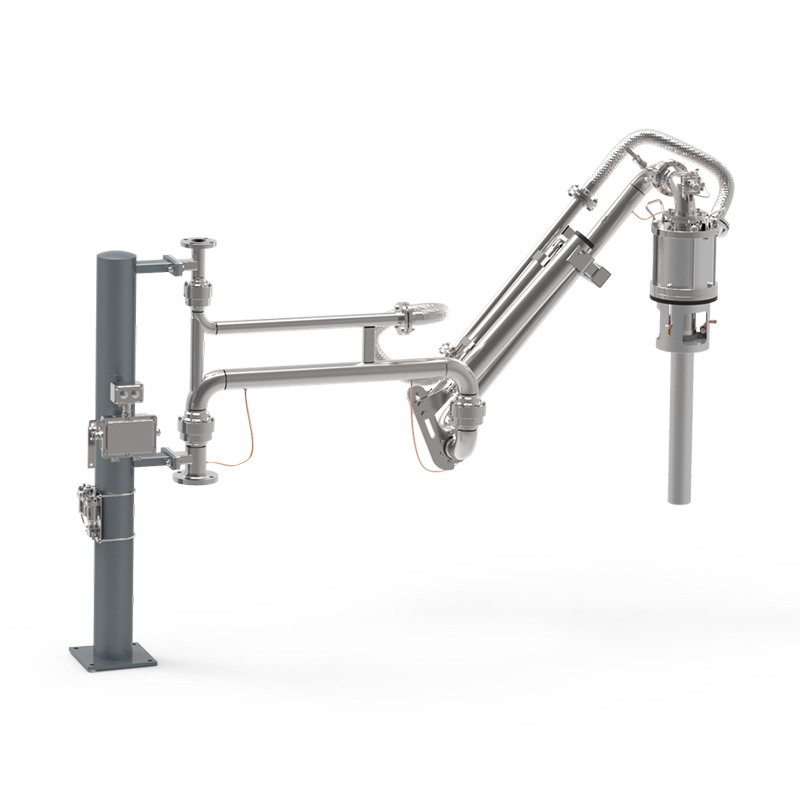

A Top Loading Arm is a specialized fluid transfer system used for loading and unloading liquids from tank trucks, rail tankers, or storage tanks through the top opening of the vessel.
It is widely used in industries such as oil & gas, petrochemicals, chemical processing, and food-grade liquid transportation, where safety, sealing performance, and operational efficiency are critical.
Unlike flexible hoses, a top loading arm provides a rigid, articulated pipeline system that ensures stable and controlled fluid transfer with reduced leakage risk.
The top loading arm is engineered with a safety-first structure to minimize risks during loading and unloading operations. Its rigid articulated pipeline system significantly reduces the possibility of leakage, vapor release, and accidental spillage compared to flexible hose systems. Equipped with optional anti-static grounding and explosion-proof components, it ensures safe operation in hazardous environments such as petrochemical terminals and fuel depots. This design helps companies comply with international safety standards and improve workplace protection.
The loading arm adopts a multi-swivel joint structure that allows smooth 360-degree rotation and vertical movement. This flexibility enables operators to accurately position the arm regardless of tank truck height or positioning deviation. The counterbalanced design reduces manual effort, improving ergonomics and operational comfort. Even in high-frequency loading stations, the system maintains stable and efficient performance, reducing operator fatigue while increasing daily throughput capacity.
Compared with traditional rubber hose systems, the top loading arm significantly improves loading efficiency. The rigid pipeline design allows faster connection and stable flow control, reducing loading time by up to 30–50% depending on application conditions. It supports both gravity and pump-assisted transfer systems, ensuring consistent flow rates for petroleum, chemical, and industrial liquids. This efficiency improvement directly increases terminal productivity and reduces vehicle waiting time.
The system is manufactured using high-quality materials such as carbon steel or stainless steel (SS304/SS316), ensuring excellent corrosion resistance and mechanical strength. Precision-engineered swivel joints reduce wear and extend maintenance intervals. Under normal industrial operating conditions, the service life can exceed 8–10 years. This durability reduces total lifecycle cost and ensures stable long-term operation even in harsh chemical or outdoor environments.
Each top loading arm system can be fully customized based on site requirements and fluid characteristics. Options include arm length, working radius, connection type, and material selection. Additional configurations such as vapor recovery systems, heating jackets, and pneumatic or electric control systems can be integrated. This engineering flexibility ensures compatibility with a wide range of industries, including oil terminals, chemical plants, and food-grade liquid facilities.
The top loading arm is designed and manufactured in compliance with international industrial standards, ensuring reliable performance and operational safety. It can be configured to meet ATEX explosion-proof requirements and other regional safety certifications. With strict quality inspection processes and pressure testing before delivery, each unit ensures stable performance in demanding industrial applications, helping customers achieve safe and compliant bulk liquid handling operations.
