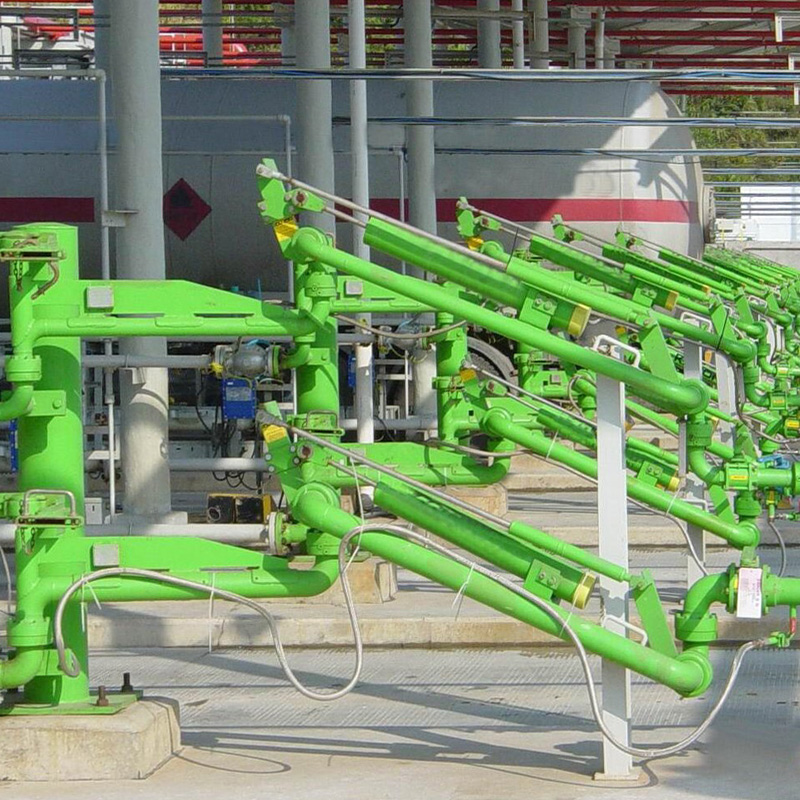

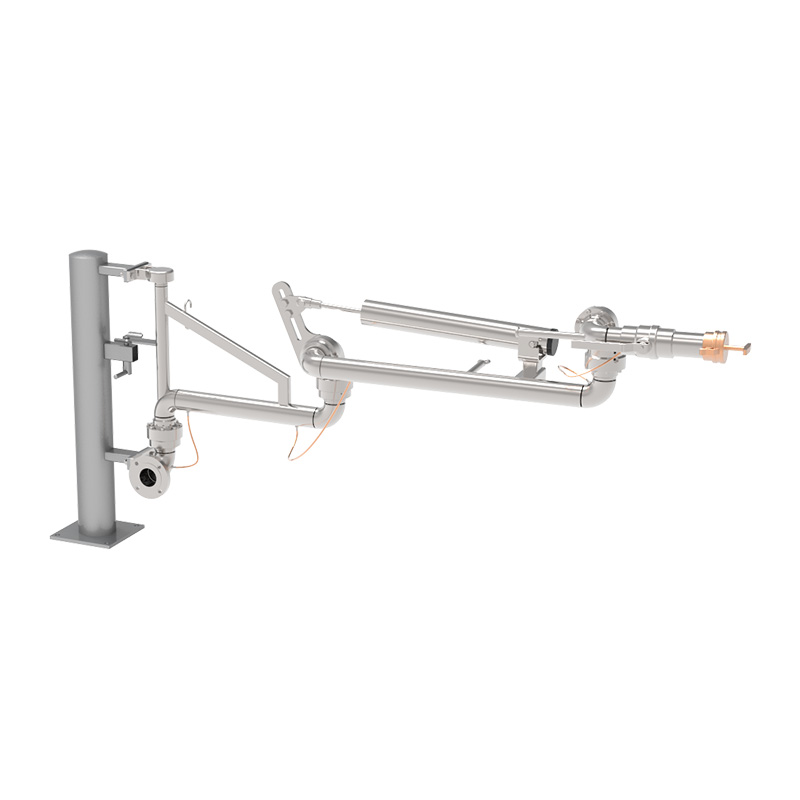

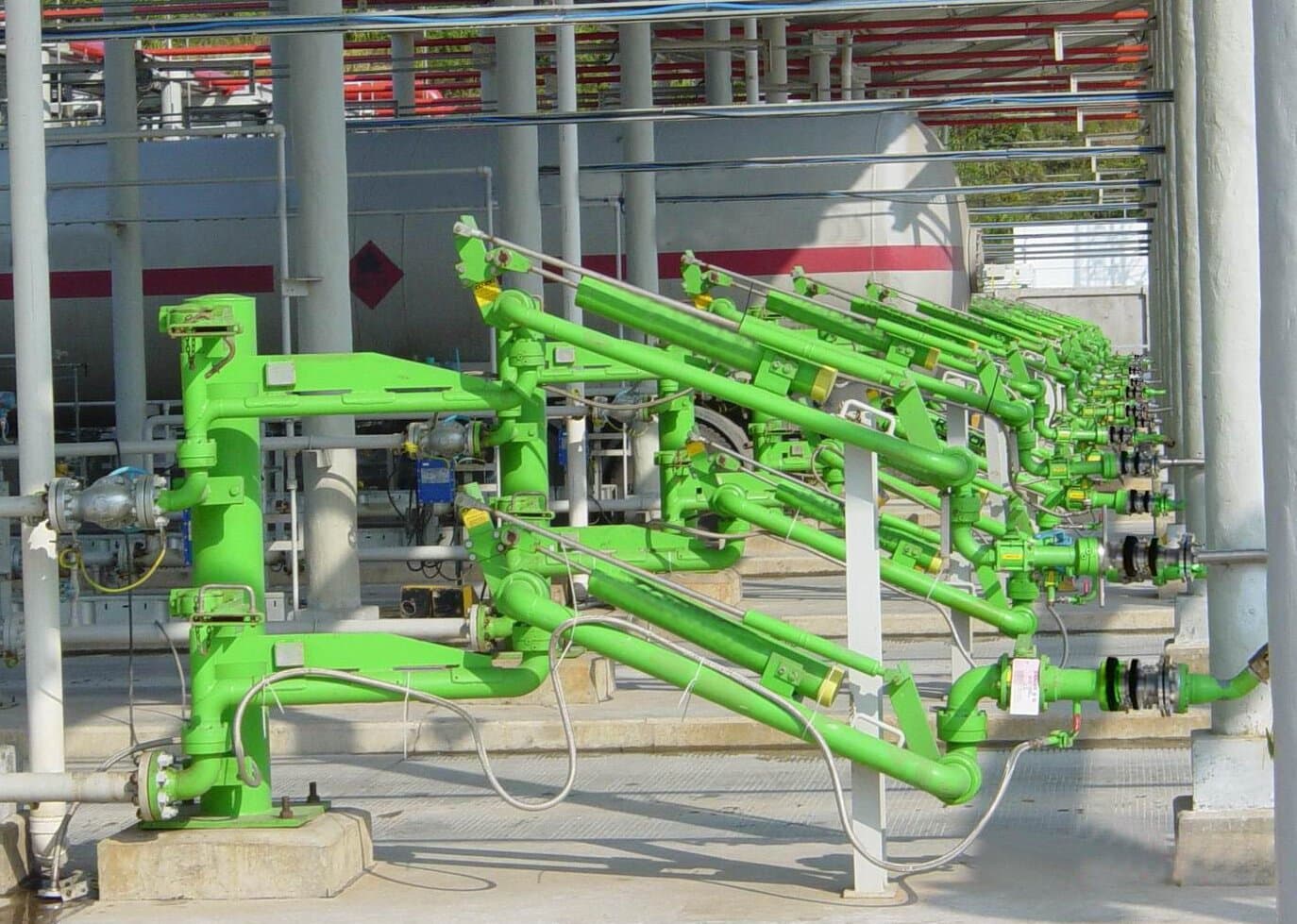

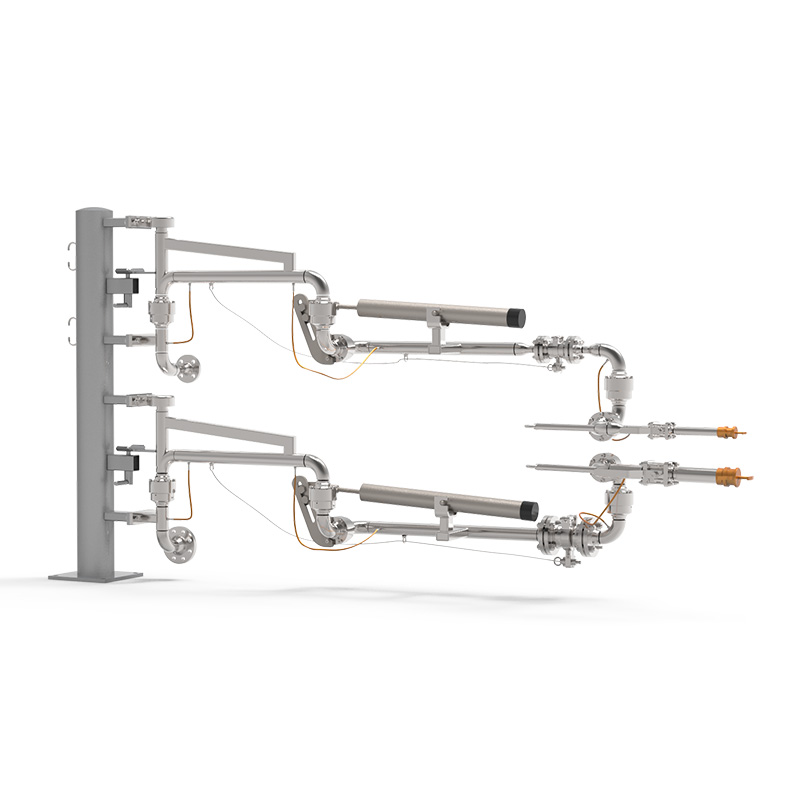

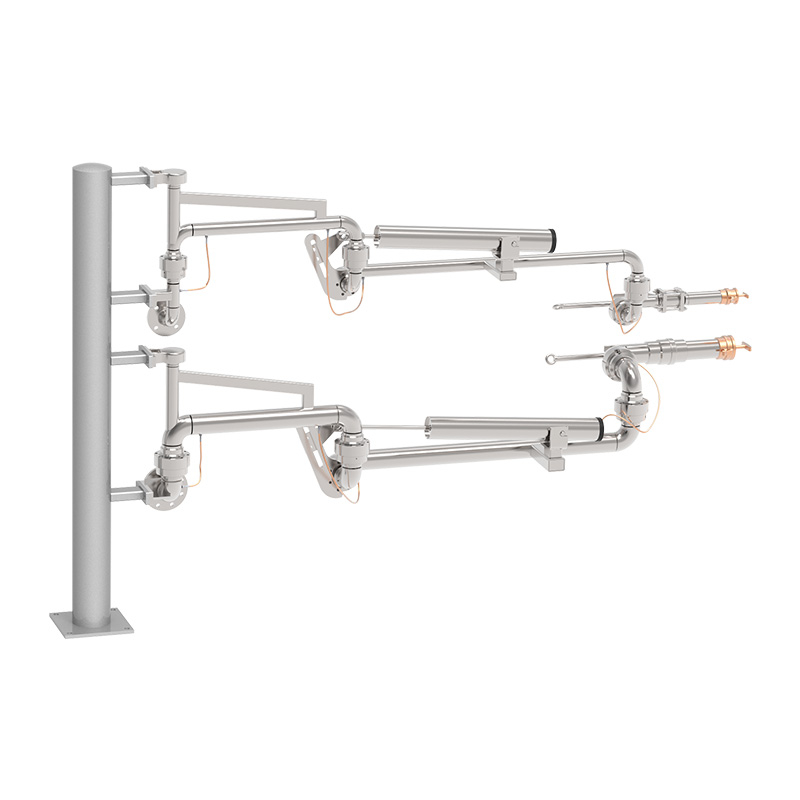

Bottom Loading Arm
The bottom loading arm is an advanced industrial loading system designed for safe and efficient bottom loading of tank trucks in petroleum, chemical, and terminal applications. It provides reliable fluid transfer with improved safety, environmental protection, and operational efficiency.
The system features precision rotary joints and a robust structure for flexible movement and accurate positioning. It supports vapor recovery and sealed connections to ensure leak-free and environmentally friendly loading.
Equipped with safety devices such as electrostatic grounding alarms, high-level detection, and locking sealing systems, it reduces operational risks. The bottom loading arm can be manually operated or integrated into automated control systems for remote management.
The bottom loading arm system is designed with a precision-balanced mechanical structure to ensure stable and accurate positioning during tank truck loading operations. Its articulated arm design reduces mechanical deviation and improves alignment consistency at the loading interface. By optimizing movement geometry and integrating industrial-grade rotary joints, the system delivers reliable performance in continuous operation environments. This makes it a core solution for bottom loading arm systems used in petroleum and chemical transfer applications requiring high positional accuracy and operational stability.
A key feature of the bottom loading arm system is its fully enclosed transfer structure combined with vapor recovery capability. The locking sealing interface minimizes leakage risk during connection and disconnection phases, while the vapor return line helps capture displaced gases. In industrial applications, emission reduction can reach up to 90–95% compared with conventional open loading methods. This design significantly improves compliance with environmental regulations and supports safe operation in modern fuel loading systems and hazardous liquid handling terminals.
Engineered for heavy-duty industrial environments, the bottom loading arm system utilizes reinforced structural steel and precision-machined swivel joints to withstand repeated loading cycles. The system maintains stable performance under high-frequency operations commonly found in oil depots and chemical terminals. Its wear-resistant components extend service life and reduce maintenance downtime. This robust engineering design enhances reliability in industrial loading arm equipment, especially in applications requiring continuous 24/7 operation and long-term mechanical stability.
Safety is embedded into the operational logic of the bottom loading arm system through multiple protection layers. It includes electrostatic grounding detection, overfill monitoring, and mechanical locking safeguards to prevent accidental spills or unsafe operations. These safety modules work in real time to minimize human error and process risks. In critical environments such as petrochemical terminals, this multi-protection system significantly improves operational safety standards for truck loading arm systems handling flammable or hazardous fluids.
The system supports dual-mode operation, allowing operators to switch between manual control and automated control depending on site requirements. When integrated with PLC or centralized control platforms, the bottom loading arm system can be upgraded into a semi-automated or fully automated loading solution. Remote monitoring capability further improves operational efficiency and enables centralized management of multiple loading bays. This flexibility makes it suitable for modern automated bottom loading systems and digital terminal infrastructure upgrades.
The bottom loading arm system is widely deployed in petroleum distribution, chemical processing plants, fuel storage terminals, and logistics hubs. It is engineered to operate reliably under temperatures ranging from -40°C to 60°C and pressure ratings up to 1.6 MPa. These parameters ensure stable performance across diverse working conditions. Its adaptability and durability make it a trusted solution for industrial bottom loading equipment and large-scale liquid transfer infrastructure projects.
