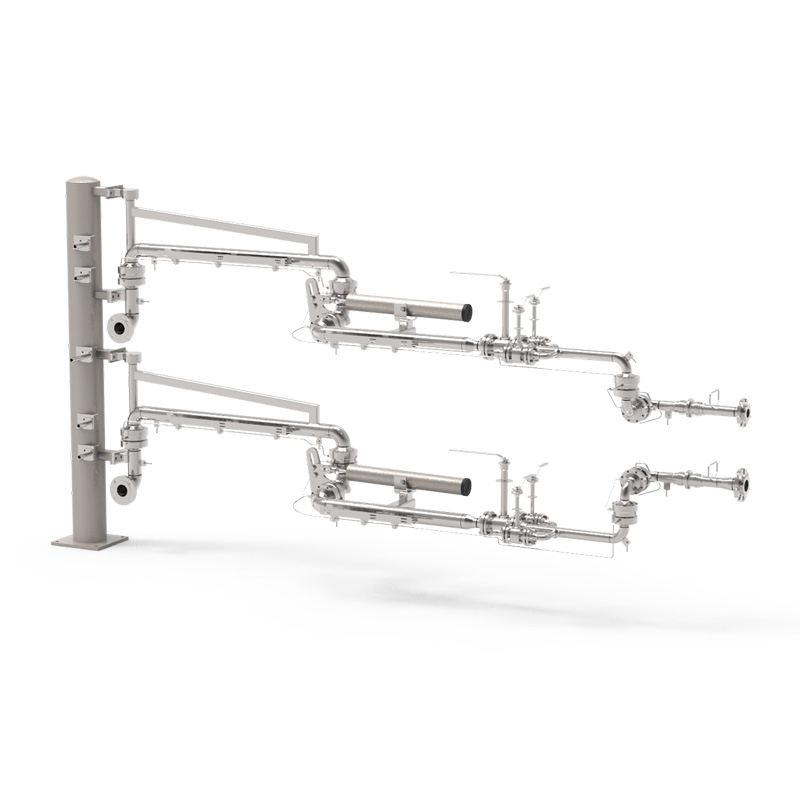

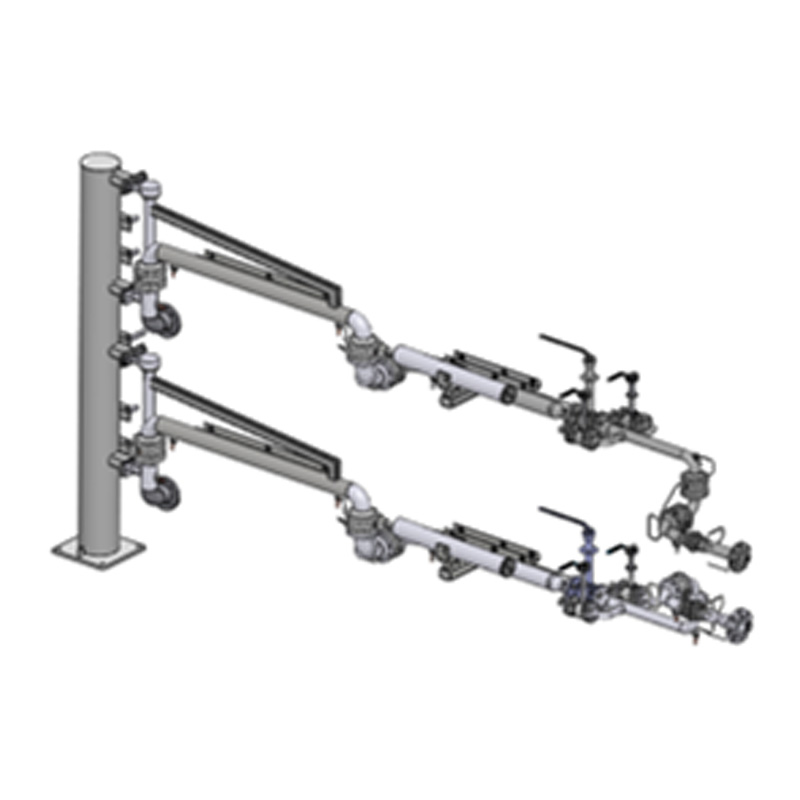

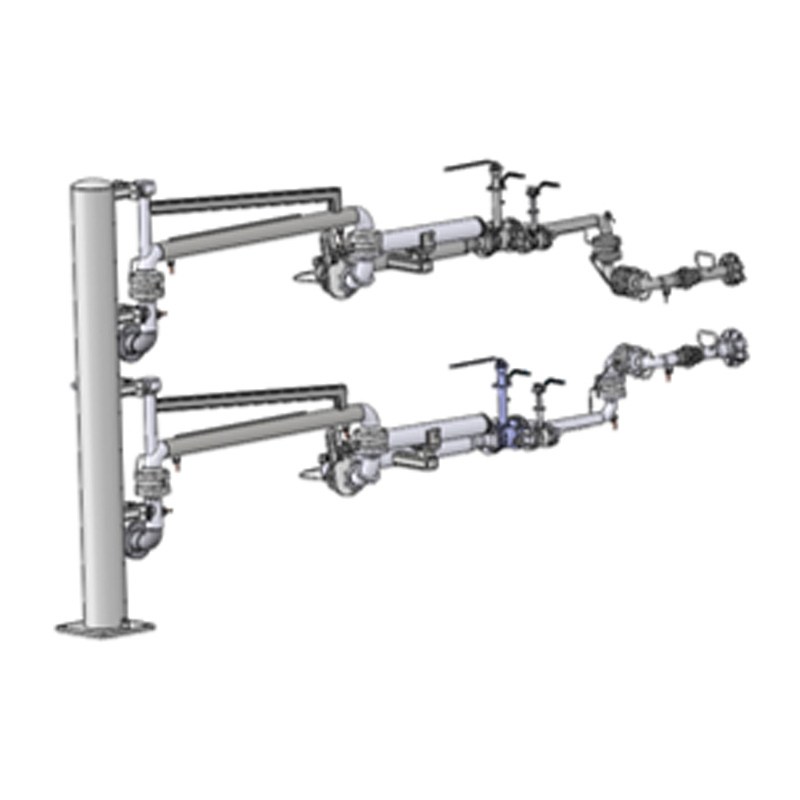

Cryogenic LNG Loading Arm for Industrial Applications

Cryogenic LNG Loading Arm - Safe & Efficient Transfer Solution for Extreme Temperatures

Designed for reliable LNG and cryogenic fluid transfer, our loading arm ensures leak-proof operation and superior durability in extreme low-temperature environments. Engineered with precision for industrial applications requiring safe, efficient, and contamination-free fluid handling.

- Robust construction for -196°C cryogenic operations
- Leak-proof swivel joints with long service life
- Compliant with international safety standards
- Customizable lengths and configurations for varied applications

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

The cryogenic loading arm is an advanced industrial fluid transfer system specifically engineered for the safe and efficient handling of low-temperature media, including liquefied natural gas (LNG), liquid ethylene, and other specialized liquefied gases. Designed to meet the rigorous demands of modern energy infrastructure, this equipment utilizes industrial-grade cryogenic stainless steel piping. This material selection ensures reliable toughness, preventing structural embrittlement and maintaining dimensional stability even when exposed to extreme cold conditions during continuous loading operations.

At the core of this system are highly specialized rotary joints that undergo a strict deep cryogenic processing treatment. This advanced manufacturing technique effectively releases internal material stress, significantly improving the long-term reliability and fatigue resistance of the moving components. By minimizing the risk of mechanical deformation, the system delivers consistent rotational accuracy, which is critical for minimizing maintenance requirements and reducing operational risks in demanding industrial environments.

To further guarantee operational safety, the equipment features precision-polished sealing surfaces that deliver highly effective leak prevention. This is complemented by an integrated nitrogen purging system that actively prevents moisture accumulation and ice formation in cold environments. Delivering sealing performance that exceeds stringent OCIMF and European Union standards, this cryogenic loading arm provides procurement teams and facility operators with a dependable solution for LNG terminals, gas storage facilities, and complex cryogenic transfer applications.

Product Advantage

1. Optimal Cryogenic Performance for LNG & Ethylene Transfer

The cryogenic loading arm is meticulously engineered to handle ultra-low temperature applications, providing a secure transfer method for LNG, liquid ethylene, and other liquefied gases. It maintains stable mechanical performance and structural integrity under extreme cold conditions, operating safely at temperatures down to approximately -196°C. By utilizing industrial-grade cryogenic stainless steel piping, the system effectively prevents cold embrittlement, a common challenge in low-temperature fluid transfer. This material stability ensures long-term operational safety, making it a highly dependable solution for energy terminals and gas storage facilities where temperature fluctuations can compromise standard equipment.

2. Deep Cryogenic Treated Rotary Joint System

The rotary joint is a critical component of the loading arm, manufactured using advanced deep cryogenic treatment technology. This specialized thermal process effectively releases internal material stress and significantly improves the fatigue resistance of the metal. As a result, the joint maintains long-term rotational stability even under repeated thermal cycling conditions. In typical LNG terminal operations, these rotary joints are designed to withstand continuous movement cycles exceeding 100,000 rotations annually. This high-durability design reduces the frequency of component replacements, lowers maintenance costs, and improves the overall service life of the cryogenic fluid transfer system.

3. High-Precision Sealing Technology with Leak Prevention

Safety in cryogenic fluid transfer relies heavily on leak prevention. The sealing surfaces of this cryogenic loading arm are precision ground and polished to achieve highly effective sealing performance. This exacting manufacturing standard ensures minimal leakage risk, even when the system is subjected to extreme temperature fluctuations during the loading and unloading phases. The tight tolerances of the sealing mechanism prevent the escape of hazardous or valuable liquefied gases, protecting both the environment and the personnel on site. This feature is essential for procurement managers specifying equipment that requires strict adherence to safety regulations.

4. Anti-Icing Nitrogen Purging System for Stable Operation

To ensure consistent reliability in low-temperature environments, the loading arm is equipped with an integrated nitrogen purging system. This mechanism continuously removes moisture and ambient air from the rotary joint area, actively preventing ice buildup caused by condensation and vapor freezing. Ice accumulation is a major failure risk in cryogenic equipment, often leading to mechanical jamming or seal damage. Field operational data demonstrates that this nitrogen purging technology can reduce icing-related downtime by over 80%. By maintaining a dry, ice-free environment around critical moving parts, the system significantly improves operational continuity.

5. Compliance with International Standards & Enhanced Safety Margin

Designed with a focus on global operational compliance, the cryogenic loading arm exceeds the stringent safety and sealing standards set by OCIMF and the European Union. This compliance ensures high reliability for international LNG and gas terminal operations. The equipment features a multi-layer safety design, combining high-performance cryogenic materials with precision engineering to provide a higher safety margin than conventional loading systems. For industrial buyers and project engineers, this adherence to international standards guarantees that the equipment will integrate safely into existing energy infrastructure projects, offering long-term operational security.

Product Uses

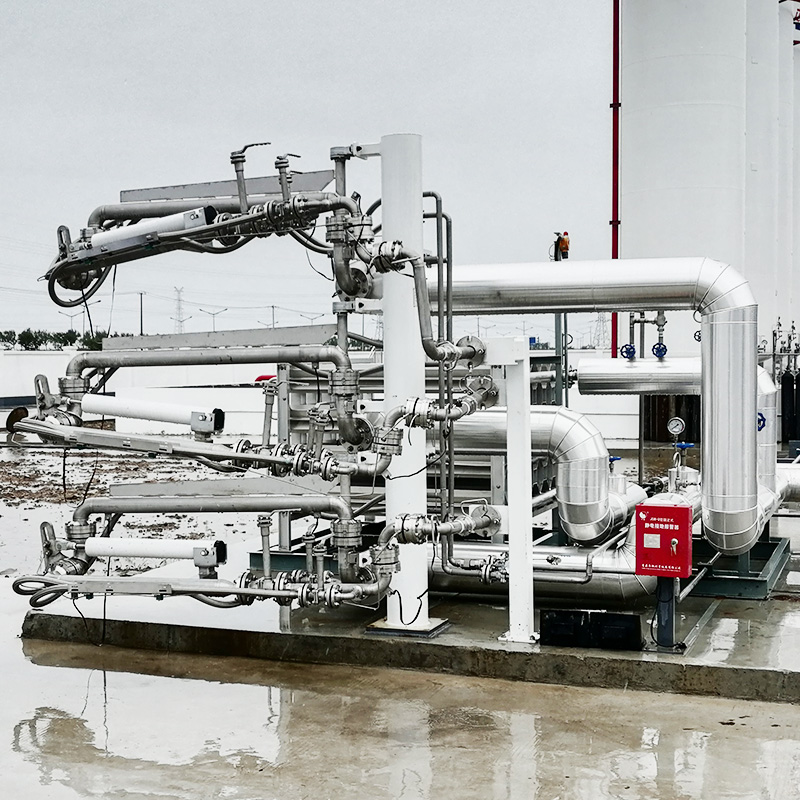

1. LNG Receiving & Export Terminals

The cryogenic LNG loading arm is widely deployed in large-scale LNG receiving and export terminals, serving as a critical link for the safe and efficient bottom loading and unloading of liquefied natural gas. In these high-capacity environments, maintaining continuous transfer rates without compromising safety is paramount. The equipment ensures stable fluid transfer performance under ultra-low temperature conditions, effectively mitigating thermal stress and preventing pipeline deformation. By maintaining a fully sealed, leak-proof connection between storage tanks and transport systems, it significantly reduces the risk of boil-off gas (BOG) emissions. Its high thermal resistance and mechanical reliability make it an essential solution for cryogenic infrastructure, directly addressing the industry's strict demands for operational continuity, emission control, and personnel safety during continuous high-volume transfers.

2. Industrial Gas Storage & Distribution Centers

Within industrial gas facilities, this cryogenic loading arm is specifically utilized for handling highly sensitive media such as liquid oxygen, nitrogen, and argon during critical storage and distribution processes. These applications require strict contamination control and minimal temperature loss to maintain fluid state and purity. The loading arm provides controlled, steady transfer of cryogenic media, utilizing advanced sealing technology and frost-resistant materials to eliminate the risk of hazardous leakage or pressure drops. The low-temperature structural design ensures operational stability even during rapid cooling phases. This makes it a core fluid handling solution for industrial gas distribution centers that require stringent process safety, precision flow control, and reliable performance across repeated daily loading cycles.

3. Petrochemical Ethylene Handling Facilities

The system is extensively applied in petrochemical plants dedicated to the transfer of low-temperature hydrocarbons, particularly liquid ethylene. Petrochemical environments pose unique challenges, including aggressive chemical atmospheres and the need for stringent vapor recovery. Constructed with premium cryogenic-grade materials and an engineered, heavy-duty structure, the loading arm guarantees stable and safe operation in these demanding settings. It is specifically designed to reduce vapor loss, ensuring that hazardous or valuable gases remain contained during continuous loading and unloading cycles. By providing a secure and flexible connection, the loading arm enhances overall operational safety and efficiency, making it an indispensable asset for chemical processing industries where dependable, low-temperature fluid handling is a regulatory and operational necessity.

4. LNG Marine Loading & Port Operations

At LNG marine terminals and busy port facilities, the cryogenic loading arm is engineered to support demanding ship-to-shore loading and unloading operations. Coastal environments introduce harsh variables, including corrosive salt air, high winds, and dynamic vessel movements caused by tides and waves. The loading arm is specifically designed to accommodate these dynamic marine movements while handling large-volume fluid transfers. It maintains exceptional flexibility and structural integrity, ensuring that the sealing mechanism remains intact even under mechanical stress. This capability prevents accidental disconnections and ensures stable, uninterrupted performance during critical maritime transfers. Consequently, it serves as a highly reliable component in global energy logistics networks, providing the high-efficiency cryogenic transfer solutions required for modern maritime LNG transport.

5. Energy Infrastructure & Multi-Modal Transport Hubs

The cryogenic loading arm plays a pivotal role in modern energy infrastructure hubs, facilitating the efficient transfer of liquefied gases between bulk storage tanks, road tankers, railcars, and secondary processing systems. In multi-modal transport networks, equipment must adapt to various connection types and high-frequency usage without excessive downtime for maintenance. This loading arm ensures safe, efficient, and continuous operation across diverse logistical setups. Supported by exceptional sealing performance and reliable low-temperature resistance, it guarantees long-term reliability and reduces the total cost of ownership for facility operators. Its versatile design makes it highly suitable for industrial cryogenic loading applications, directly supporting the efficiency, safety, and scalability of contemporary energy distribution and supply chain systems.

Product Operate Guide

1. Pre-Operation Preparation and Safety Verification

Before initiating any procedures with the cryogenic LNG loading arm, operators must ensure that the equipment is properly grounded. Grounding is a critical safety measure to eliminate the risk of static electricity accumulation during the transfer of flammable cryogenic fluids. Next, verify that all integrated safety systems are fully active and operational. This includes checking the Emergency Release System (ERS), position monitoring sensors, and all visual or audible alarm systems. Once safety checks are complete, carefully align the outboard arm with the receiving tank inlet. Depending on the specific equipment configuration, utilize either manual operation or the assisted control system to guide the connection process. Confirm that the mechanical or hydraulic coupler is securely locked onto the manifold to establish a strict, leak-proof seal.

2. System Pre-Treatment: Purging and Pre-Cooling

To maintain the integrity of the system and ensure safe operation, pre-treatment steps are mandatory. First, perform a thorough nitrogen purging of the entire pipeline. Introducing nitrogen effectively displaces any residual moisture, oxygen, and atmospheric impurities from the system, preventing dangerous ice formation and ensuring a safe environment for LNG transfer. Following the purge, execute a controlled pre-cooling of the pipeline. Initiate this process by introducing a small, regulated flow of LNG or cold vapor. Gradually lowering the internal temperature of the loading arm to match the cryogenic operating conditions is essential. This gradual thermal transition prevents severe thermal shock, protecting the structural integrity of the swivel joints, seals, and piping materials.

3. Active Transfer Operation and Monitoring

During the active loading or unloading phase, operators must strictly adhere to the designated valve sequencing. Open the system valves in the exact order dictated by the central control system and standard operating procedures. Never force valves manually or attempt to bypass automated safety interlocks. Throughout the fluid transfer process, it is vital to continuously monitor key operational parameters. Keep a close watch on the flow rate, internal pressure gauges, and temperature indicators to ensure they remain within the specified safe operating limits. Additionally, conduct regular visual inspections of the swivel joints, couplers, and all connection points. Look for any signs of leakage, abnormal frosting patterns, or unexpected condensation. If any irregularities or pressure drops are detected, halt the operation immediately and consult the safety protocols.

4. Post-Operation, Purging, and Safe Disconnection

Upon successful completion of the LNG transfer, begin the shutdown process by closing all primary and secondary valves. Ensure this is done in the reverse order of opening to safely isolate the loading arm from the main fluid supply. Once isolated, execute a final post-transfer nitrogen purge. This critical step clears any residual LNG from the internal piping of the arm, ensuring the system is completely empty, depressurized, and safe for disconnection. Carefully unlock and disconnect the coupler from the tank inlet. Retract the loading arm using the automated control system or manual guidance, and return it to its designated parking position. Finally, ensure all mechanical locks and securing mechanisms are fully engaged to prevent any unintended movement or stress on the arm during non-operational periods.

FAQ

What is a cryogenic loading arm used for?

A cryogenic loading arm is specifically engineered for the safe, leak-free transfer of ultra-low temperature liquids, including LNG, liquid ethylene, liquid oxygen, and liquid nitrogen. It is essential equipment for LNG terminals, petrochemical plants, and industrial gas facilities, ensuring stable loading and unloading operations while minimizing operational risks under strict safety protocols.

Can the system operate safely at extremely low temperatures?

How does the system prevent freezing or jamming?

What safety and sealing standards does it meet?

Is the system suitable for marine LNG loading operations?
