Automatic Loading Arm For Industrial Applications

Automatic Loading Arm - Streamline Your Industrial Material Handling

This high-performance automatic loading arm is designed to optimize efficiency and safety in industrial material transfer operations. Its robust construction ensures reliable performance for bulk loading applications across various industries.

- Precision-engineered for seamless integration with existing systems
- Automated operation reduces manual labor and increases productivity
- Durable construction for long-term performance in demanding environments
- Customizable configurations to meet specific industrial requirements

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

The automatic positioning loading arm represents a significant leap forward from traditional fluid handling methods, offering an advanced solution tailored for modern industrial applications. Engineered to align with Industry 4.0 standards, this system integrates programmable logic controller (PLC) technology, industrial vision positioning, and highly responsive servo or pneumatic drive systems.

By incorporating a user-friendly Human-Machine Interface (HMI) and remote monitoring capabilities, the equipment facilitates both semi-automatic and fully automatic operations. This intelligent integration minimizes the need for manual intervention, substantially reducing labor intensity while elevating overall operational safety and fluid transfer efficiency.

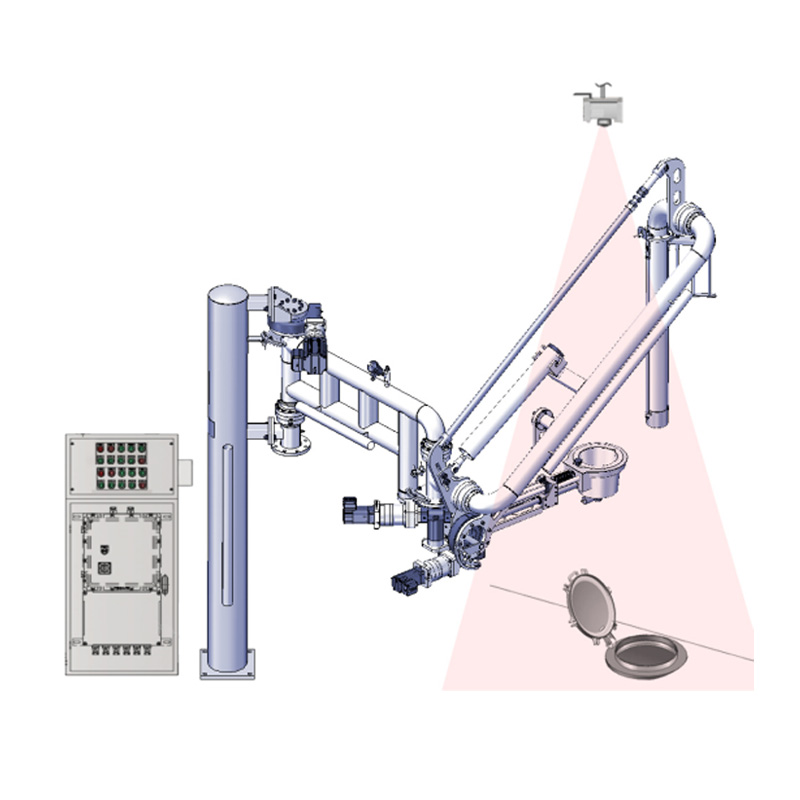

Utilizing industrial cameras paired with intelligent image recognition algorithms, the system accurately detects and calculates the exact position of the loading interface. This ensures precise alignment between the loading arm and the designated loading point, mitigating the risks associated with human error and optimizing the workflow for high-volume fluid handling facilities.

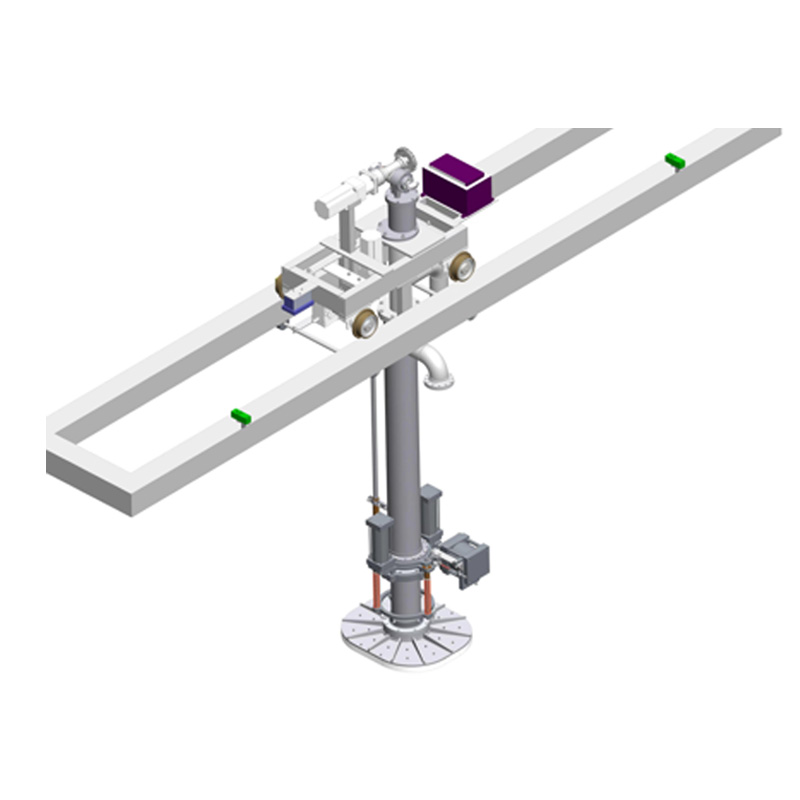

Designed for the rigorous demands of modern truck loading operations, the automatic loading arm is built upon a heavy-duty cantilever structure. It incorporates an intelligent automatic positioning system that fundamentally improves how fluid transfer is managed.

By leveraging high-definition industrial cameras and advanced visual recognition technology, the equipment automatically detects and locates the tank truck loading port in real time. This capability ensures rapid and highly accurate alignment, regardless of minor vehicle misalignments.

Product Advantage

Automatic Loading Arm – Product Overview

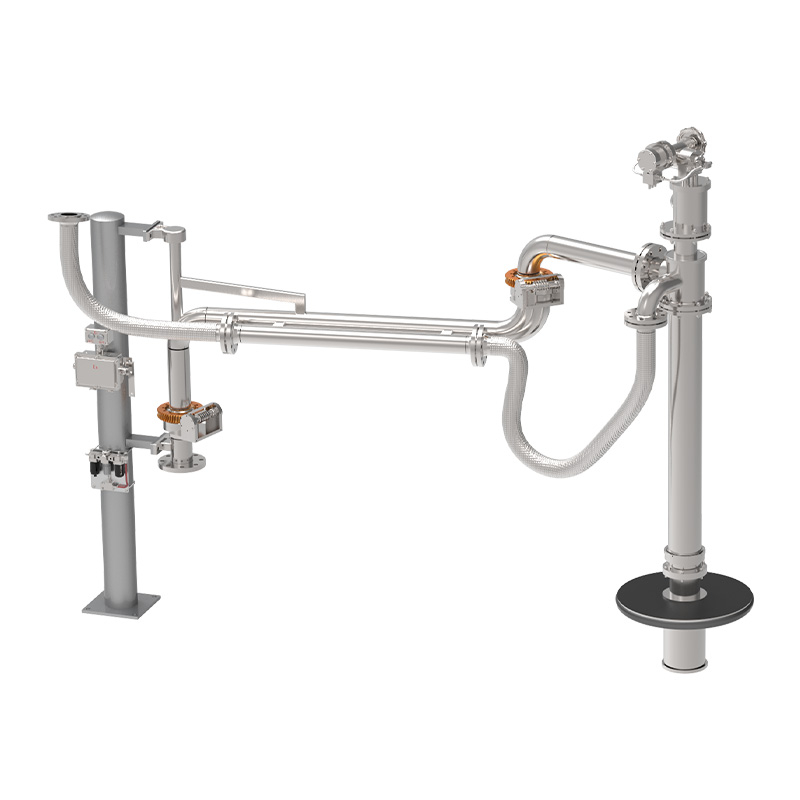

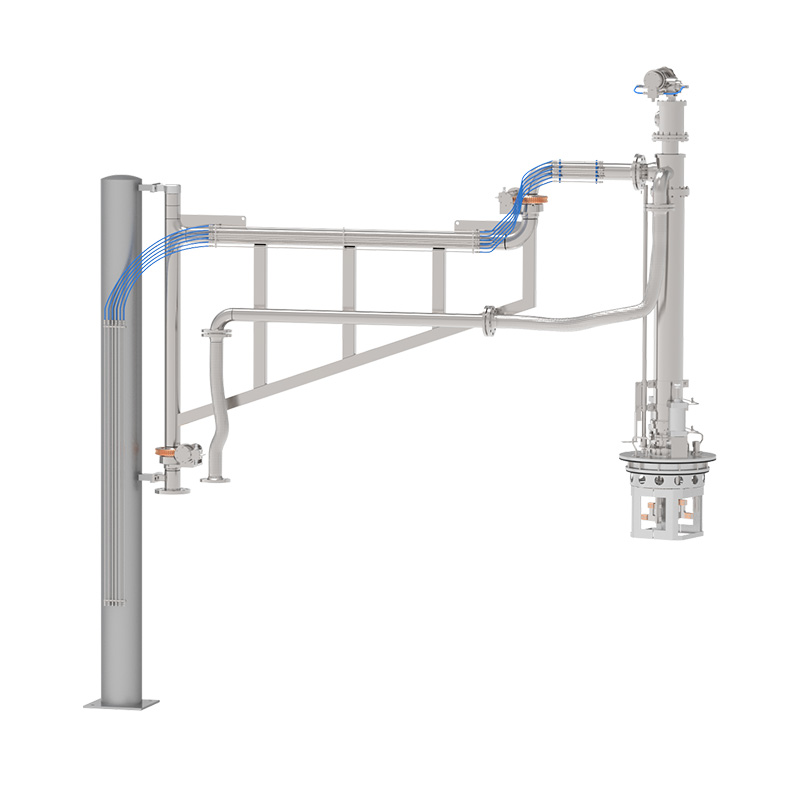

The automatic loading arm is an advanced automated fluid handling system designed for modern truck loading operations. It is based on a cantilever structure and equipped with an intelligent automatic positioning system. Using high-definition industrial cameras and visual recognition technology, the system automatically detects and locates the tank truck loading port, ensuring fast and accurate alignment. With hydraulic, electric, or pneumatic drive systems, the loading arm achieves smooth three-axis movement for flexible operation in complex working environments.

Intelligent Visual Positioning & Control System

At the core of this automated solution is a sophisticated vision-based positioning system integrated with a high-precision control mechanism. The industrial camera system continuously scans and identifies the tank inlet, feeding real-time spatial data to the PLC control unit.

The PLC processes this positioning data instantly, adjusting the arm's trajectory to achieve fully automatic targeting and alignment without requiring manual guidance.

Structural Flexibility & Sealing Technology Features

The gas-liquid pipeline section of the automatic loading arm is engineered with a high-strength rotary joint design. This construction allows the arm to articulate freely and reach any tank truck inlet within its designated operating envelope.

This significantly improves adaptability across diverse loading scenarios and vehicle types, driven by reliable hydraulic, electric, or pneumatic systems that execute smooth, three-axis movements.

Furthermore, environmental protection and operational safety are prioritized through the inclusion of a locking-type sealing device and a dedicated vapor recovery pipeline system, guaranteeing fully sealed loading operations and drastically reducing vapor leakage.

Automation Performance & Operational Advantages

Flexibility in operation is a key advantage of this system. The automatic loading arm supports both manual and automatic control modes, enabling operators to switch effortlessly based on specific site requirements or emergency situations.

The system can also be operated remotely, allowing for centralized management and keeping personnel at a safe distance from the transfer zone.

Through visual automatic positioning and intuitive one-button operation, the equipment streamlines the entire loading process. Operators simply initiate the command via the control interface, and the system autonomously completes the alignment and fluid transfer.

Optional Safety & Monitoring Functions

To address the stringent safety requirements of fluid transfer operations, the automatic loading arm can be customized with a comprehensive suite of safety and monitoring accessories designed to mitigate risks:

Electrostatic Grounding Alarm System: Continuously monitors grounding status to prevent static electricity buildup.

Liquid Level Alarm System: Provides real-time monitoring of fluid levels within the tank to prevent overfilling.

Locking Sealing Mechanism: Ensures a secure, leak-proof connection between the loading arm and the tank inlet.

Vapor Recovery Return Line: Captures and redirects volatile organic compounds (VOCs) and harmful vapors.

High-Level Overflow Alarm System: Acts as a fail-safe to automatically halt operations if the fluid reaches critical capacity.

These integrated safety features provide peace of mind, ensuring that fluid transfer processes remain reliable, compliant, and secure.

Technical Specifications

The automatic loading arm is designed for a wide range of industrial applications with the following specifications:

Application: Top loading for tank trucks

Medium: Refined oil, chemicals, and other liquid products

Nominal Diameter: DN80, DN100

Design Temperature: -40°C to 60°C

Design Pressure: 0.1–1.6 MPa

Product Uses

1. LNG Receiving & Export Terminals

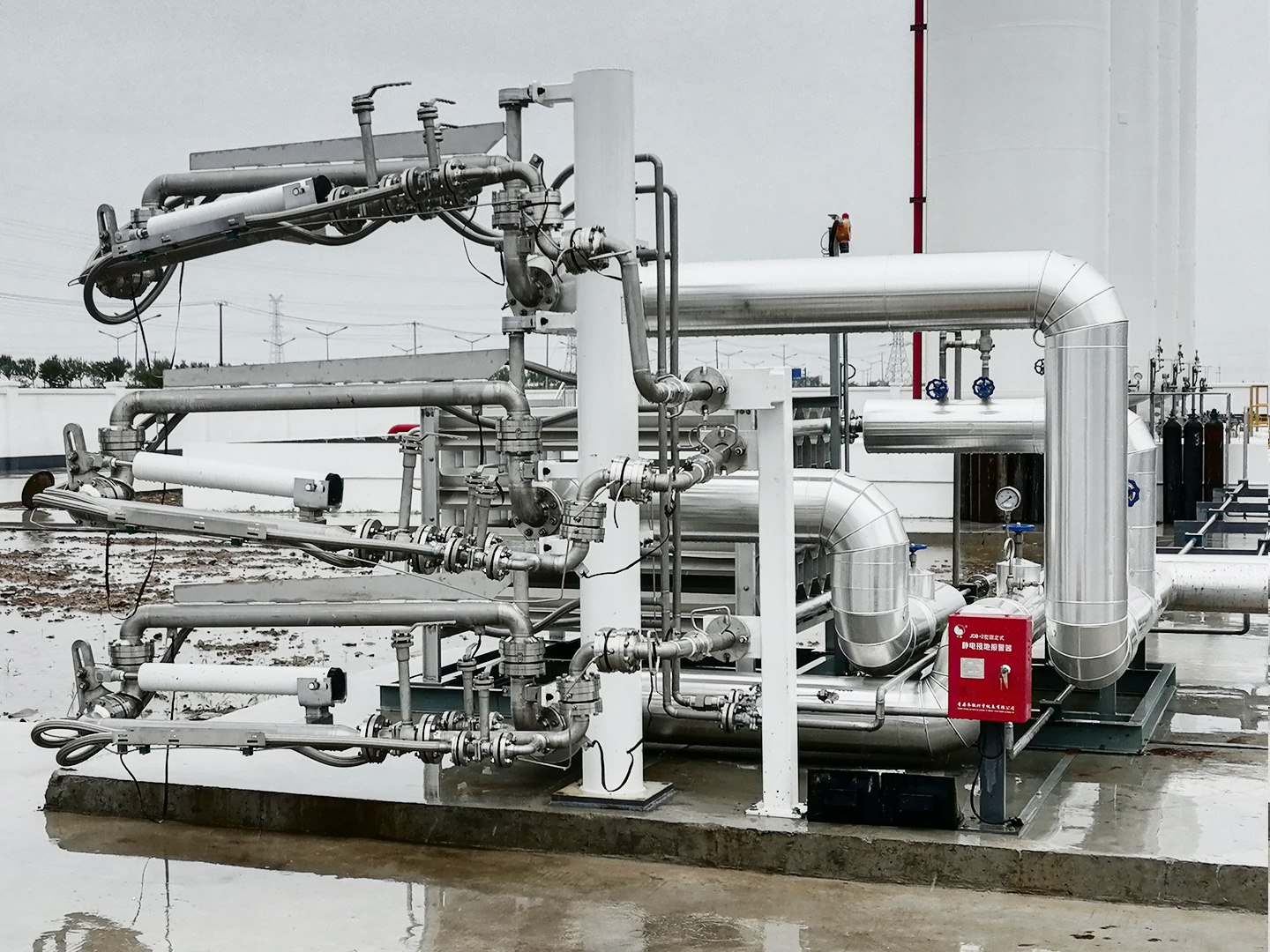

The automatic loading arm is extensively deployed in LNG receiving and export terminals, providing a highly secure solution for the bottom loading and unloading of liquefied natural gas. In these large-scale facilities, maintaining a fully sealed connection between massive storage tanks and transport systems is critical. Designed to withstand ultra-low temperatures without material fatigue, the equipment ensures continuous, high-volume transfer performance. By minimizing thermal stress and preventing boil-off gas (BOG) emissions, this system helps terminal operators maintain strict safety standards, reduce operational downtime, and optimize the overall efficiency of cryogenic fluid logistics.

2. Industrial Gas Storage & Distribution Centers

Within industrial gas facilities, this loading arm is engineered for the precise handling of highly sensitive cryogenic media, including liquid oxygen, liquid nitrogen, and liquid argon. During complex storage and distribution processes, preventing cross-contamination and temperature loss is vital for product purity. The system features advanced sealing technology and a reinforced low-temperature structural design that eliminates the risk of hazardous leaks. For procurement teams outfitting industrial gas distribution hubs, this translates to enhanced process safety, lower maintenance frequency, and reliable operational stability even during continuous, high-pressure fluid transfer cycles.

3. Petrochemical Ethylene Handling Facilities

Petrochemical plants require specialized equipment for the transfer of low-temperature hydrocarbons like ethylene. This automatic loading arm is constructed from premium cryogenic-grade materials, allowing it to perform reliably in aggressive, continuous chemical processing environments. Its engineered structure prevents material embrittlement, a common challenge in low-temperature chemical handling. By significantly reducing vapor loss and ensuring leak-free connections during high-frequency loading cycles, the system directly improves operational safety and cost-efficiency. It serves as a vital component for chemical industries that demand stable, long-term performance and strict environmental compliance during hazardous fluid transfers.

4. LNG Marine Loading & Port Operations

Marine environments present unique challenges, including dynamic vessel movements, tidal fluctuations, and harsh corrosive conditions. At LNG marine terminals and port facilities, this loading arm supports efficient ship-to-shore loading and unloading operations. Its flexible articulating design effectively accommodates ship drift and elevation changes while maintaining absolute sealing integrity. Capable of handling large-volume transfers, the system reduces vessel turnaround times, offering significant economic value to port operators. Its structural resilience ensures stable, uninterrupted performance, making it an indispensable asset for global energy logistics networks and high-capacity marine LNG infrastructure.

5. Energy Infrastructure & Multi-Modal Transport Hubs

Modern energy supply chains rely on multi-modal transport hubs where liquefied gases are frequently transferred between storage tanks, road tankers, and railcars. This automatic loading arm provides the adaptability needed for diverse connection types and tanker sizes. It ensures safe, rapid, and continuous operation across complex energy infrastructure networks. With its exceptional low-temperature resistance and strong sealing performance, the equipment minimizes product loss during frequent switchovers. For facility managers, integrating this loading arm means lowering the risk profile of transport operations and achieving long-term reliability in demanding energy distribution environments.

Product Operate Guide

Standard Operating Procedures & Safety Guidelines

To ensure the safe and efficient transfer of industrial fluids, operators must strictly adhere to the standard operating procedures for the automatic loading arm. Proper handling minimizes the risk of industrial accidents, prevents equipment damage, and ensures long-term operational stability. Operators must be fully trained and equipped with appropriate Personal Protective Equipment (PPE) before interacting with the system.

Phase 1: Pre-Operation Preparation

System Grounding and Safety Verification: Before initiating any movement, verify that the automatic loading arm is properly grounded. This is a critical step to dissipate static electricity and prevent potential ignition hazards during fluid transfer. Ensure that all emergency shutdown (ESD) systems and safety interlocks are fully active and properly calibrated.

Alignment and Secure Connection: Utilize the manual override or the assisted control system to carefully align the loading arm with the designated tank inlet. Once aligned, establish the connection and double-check the locking mechanisms. A secure, leak-proof connection must be confirmed by the operator before any fluid transfer begins.

Phase 2: Purging and System Pre-Cooling

Pipeline Nitrogen Purging: Prior to introducing the transfer medium, perform a comprehensive nitrogen purging of the pipeline. This step displaces ambient air, removes residual moisture, and creates an inert environment, which is essential for preventing contamination and internal ice formation during cryogenic operations.

Controlled Pre-Cooling: To prevent thermal shock and protect the structural integrity of the swivel joints and piping, initiate the pre-cooling process. Introduce the cryogenic or high-temperature fluid gradually, allowing the internal components of the loading arm to adjust to the operating temperature safely without mechanical stress.

Phase 3: Active Operation and Monitoring

Sequential Valve Activation: Open the system valves strictly in the correct sequence as dictated by the central control system. Incorrect valve sequencing can lead to pressure spikes or fluid hammer, which may severely compromise the pipeline connections and overall system safety.

Continuous Status Monitoring: Throughout the entire loading or unloading process, operators must continuously monitor the system parameters. Keep a close watch on pressure gauges, temperature sensors, and flow rates. Regularly inspect all connection points and swivel joints for any early signs of leakage, abnormal condensation, or mechanical vibrations.

Phase 4: Safe Wrap-Up and Parking

Safe Shut-Down Sequence: Upon completion of the fluid transfer, close all valves in the designated safe sequence. Ensure the fluid flow is completely halted and pressure is stabilized before proceeding to the disconnection phase.

Post-Operation Nitrogen Purging: Execute a final nitrogen purge through the loading arm pipeline. This critical step clears out any residual fluids, leaving the system clean, dry, and safe for the next operation or upcoming maintenance cycle.

Disconnection and Secure Parking: Carefully disconnect the loading arm from the tank inlet. Use the control system to return the equipment to its designated parking position. Engage all mechanical locks to secure the arm safely, ensuring it remains stable and protected from environmental factors until the next use.

Following these standardized operating procedures not only ensures immediate operational safety but also significantly extends the service life of the mechanical and control components of the automatic loading arm.

FAQ

What is a cryogenic loading arm used for?

A cryogenic loading arm is engineered for the secure and efficient transfer of ultra-low temperature fluids, including LNG, liquid ethylene, liquid oxygen, and liquid nitrogen. It serves as a critical connection in LNG terminals and industrial gas facilities, ensuring a completely sealed loading and unloading process. By minimizing fluid loss and maintaining thermal stability, this equipment provides a reliable solution for demanding cryogenic transfer operations.

Can the system operate safely at extremely low temperatures?

How does the system prevent freezing or jamming?

What safety and sealing standards does it meet?

Is the system suitable for marine LNG loading operations?
