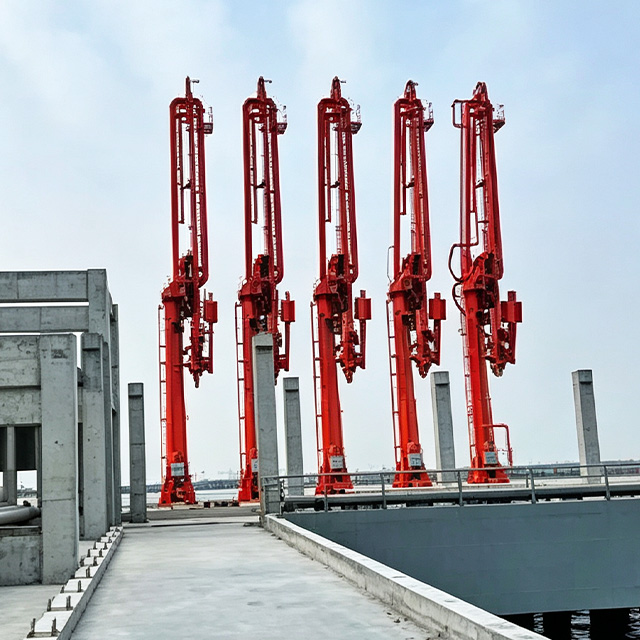

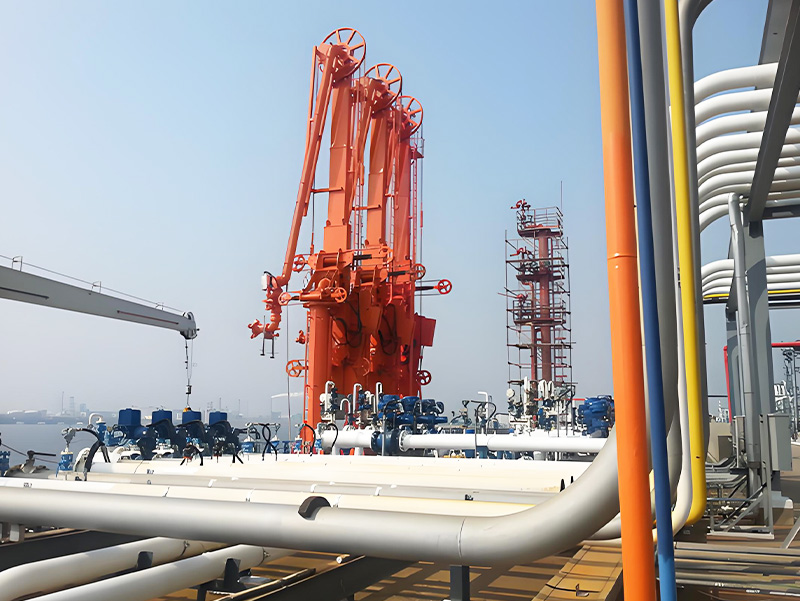

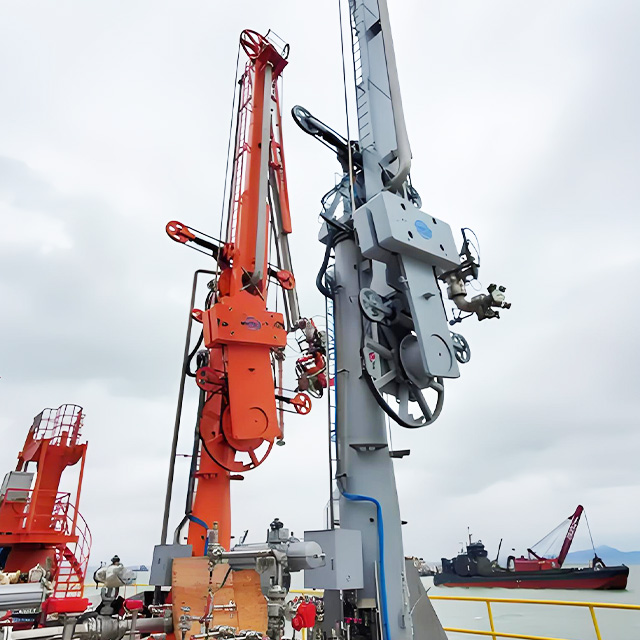

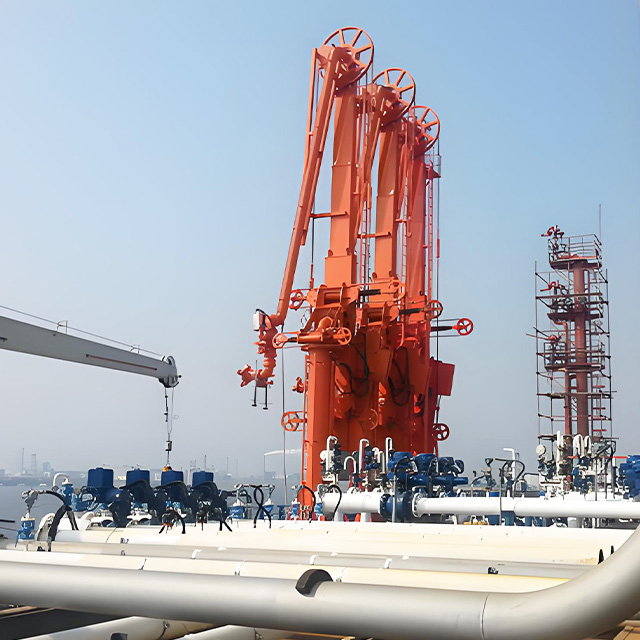

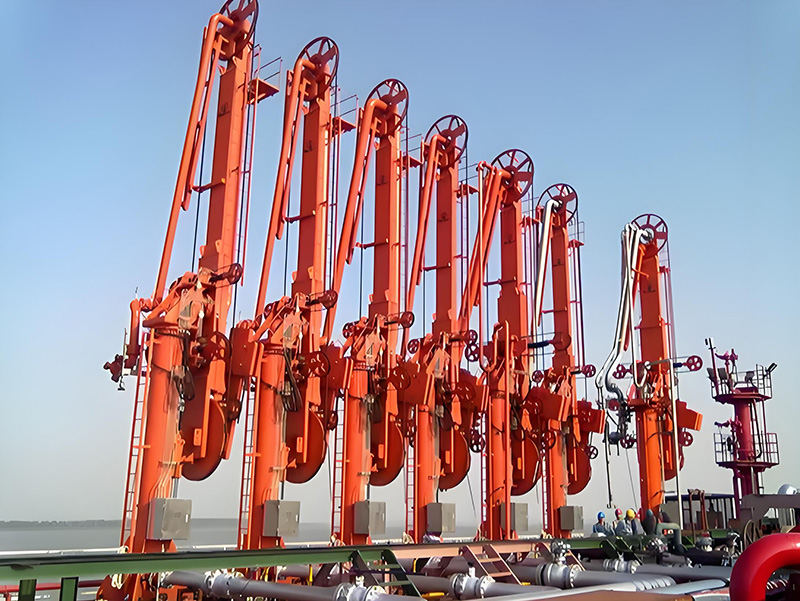

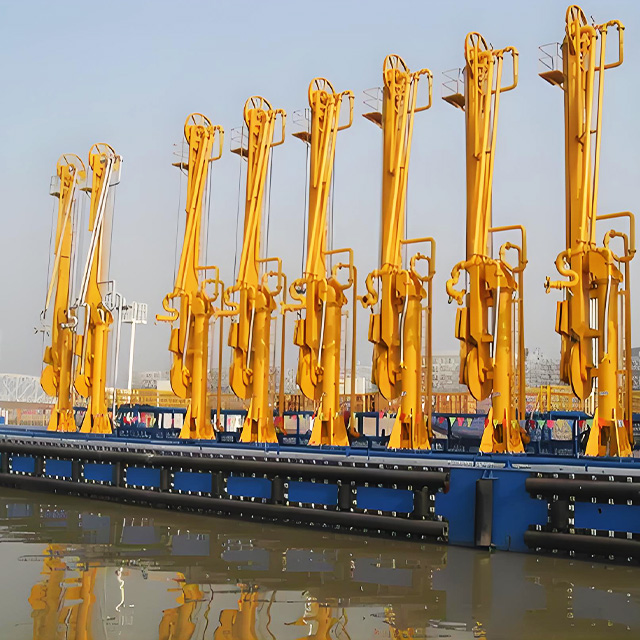

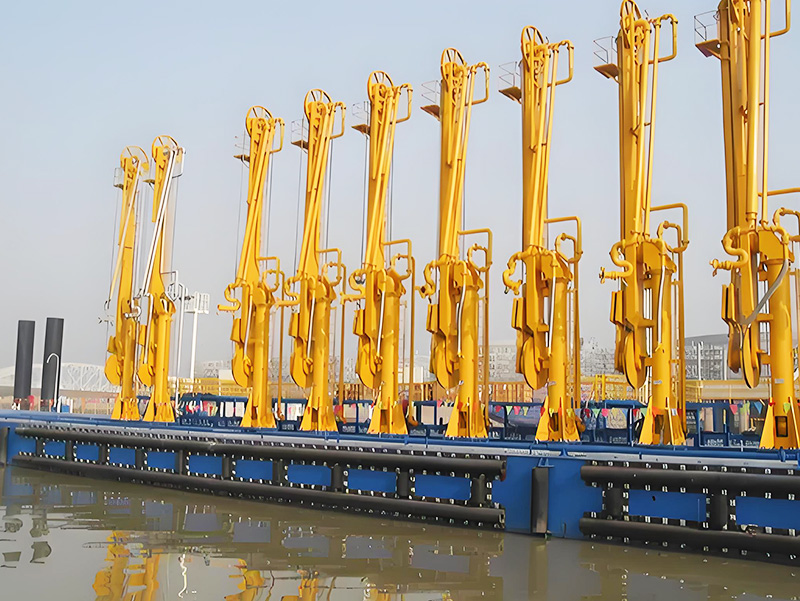

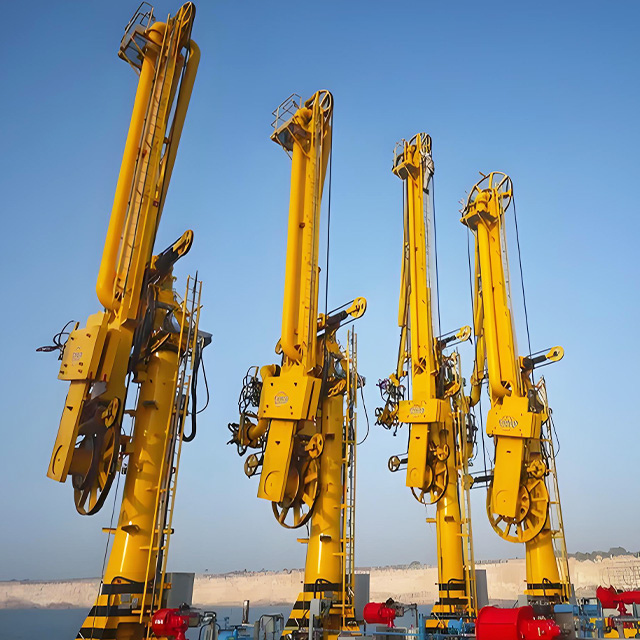

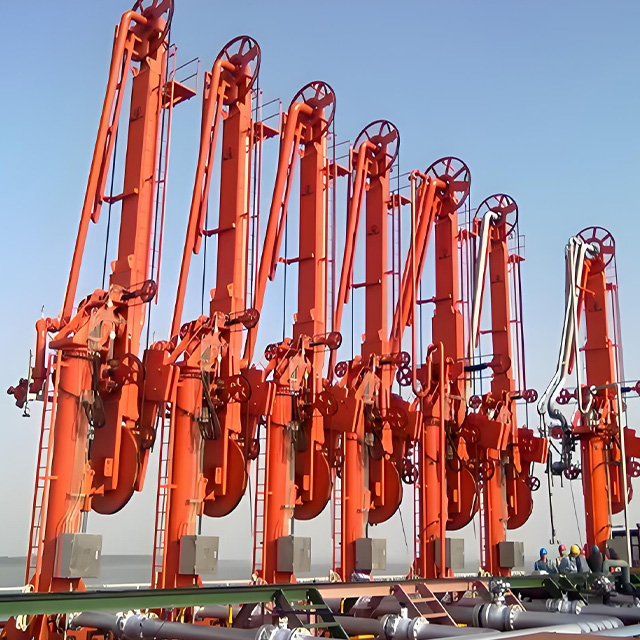

The marine loading arm is an advanced fluid transfer system designed for safe and efficient loading and unloading of liquids between shore terminals and tanker vessels.
It is widely used in the transportation of oil, chemicals, and liquefied gases. The system is engineered to adapt to vessel movements during operation, ensuring continuous and stable transfer within a defined working envelope without causing mechanical damage.
Equipped with a real-time range monitoring system, it provides visual and audible alerts when approaching safety limits. An optional Emergency Release System (ERS) enhances operational safety and minimizes product loss.
The loading arm can be operated manually or via an electro-hydraulic control system, offering reliable performance for various terminal applications.
The marine loading arm is designed with a strong emphasis on operational safety during fluid transfer operations. It is equipped with a real-time monitoring system that continuously tracks the working range of the equipment. When the operation approaches predefined safety limits, both visual and audible alarms are automatically triggered to alert operators in advance. This proactive safety mechanism helps reduce operational risks and ensures stable performance under complex terminal conditions.
The system is engineered to accommodate vessel movement caused by tides, wind, and loading conditions. Its articulated structural design allows smooth and continuous adjustment within the working envelope, ensuring stable connection between shore facilities and tanker vessels. This capability helps maintain uninterrupted fluid transfer while preventing mechanical stress on pipelines and connection points, even in dynamic marine environments.
An optional emergency protection system can be integrated to enhance operational safety in critical situations. When abnormal conditions or excessive vessel movement occur, the system enables safe flow isolation and controlled disconnection of the loading arm. This function significantly reduces the risk of product leakage and protects both ship and shore equipment from potential damage, ensuring higher operational security.
The loading arm can be configured for different operation requirements, including manual control and electro-hydraulic systems. Manual operation is suitable for basic terminal applications, while electro-hydraulic control provides smoother movement, higher precision, and improved operational efficiency. This flexibility allows the system to be adapted to various project scales and automation levels.
The equipment is manufactured using high-quality carbon steel or stainless steel materials depending on application requirements. All key components are designed to withstand corrosion, pressure variations, and long-term exposure to marine environments. This ensures stable performance, extended service life, and reduced maintenance requirements, even under continuous industrial operation.
The marine loading arm is developed in accordance with internationally recognized engineering and safety practices. It has been widely applied in terminal projects involving oil, chemical, and LNG transfer operations. Strict manufacturing and inspection processes ensure consistent quality, operational reliability, and compatibility with global industrial standards.
