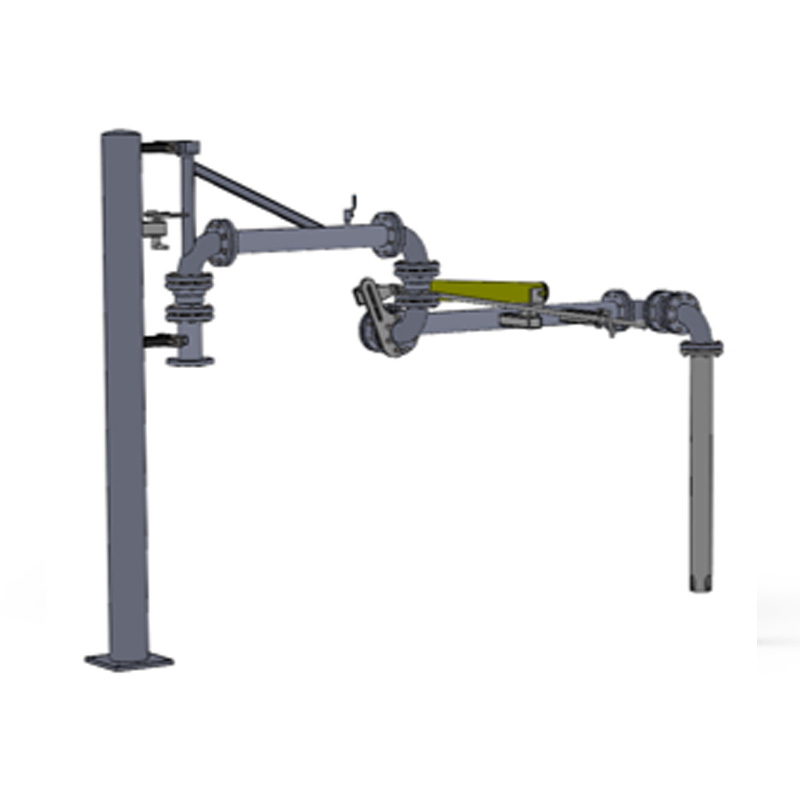

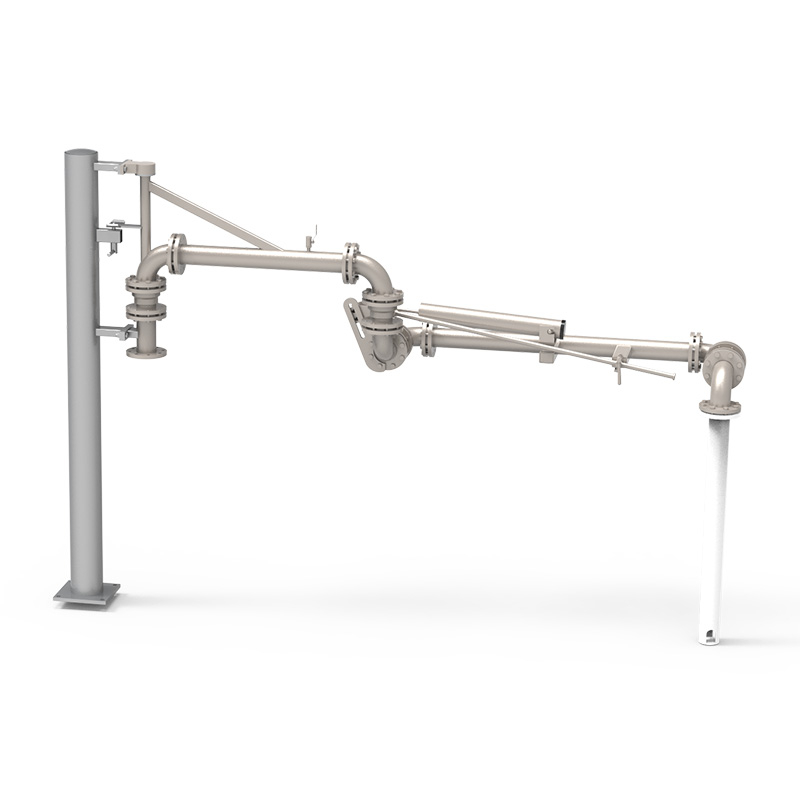

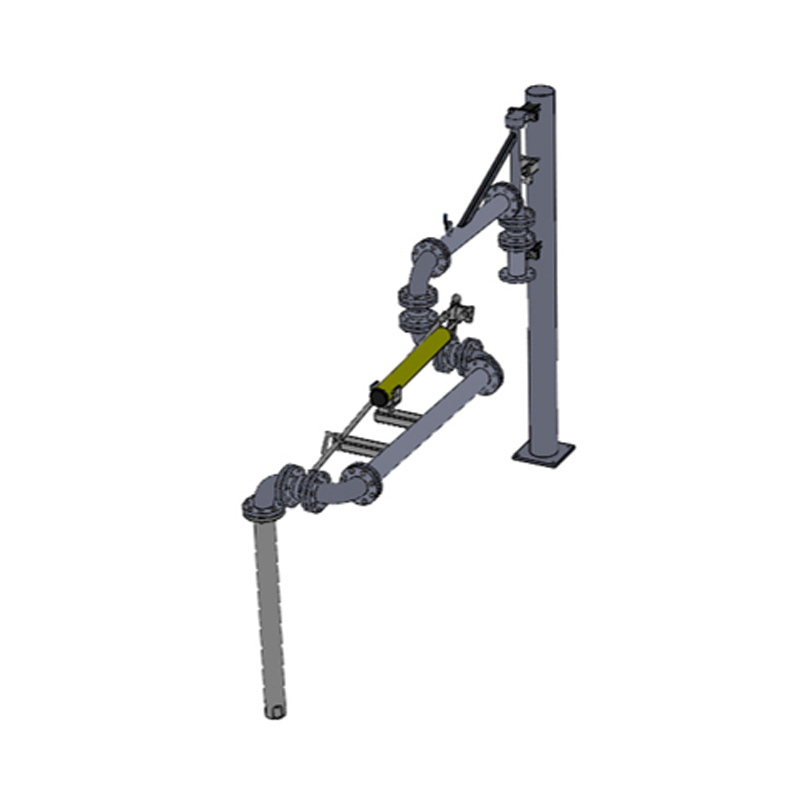

The PTFE-lined loading arm is designed for safe and reliable handling of highly corrosive media such as hydrochloric acid, sodium hypochlorite, and dilute sulfuric acid.
All wetted parts, including pipelines and rotary joints, adopt fluoropolymer lining technology to effectively isolate corrosive fluids from metal components, significantly extending equipment service life.
It is widely used in corrosion-resistant loading arm systems and chemical liquid transfer applications requiring high safety and durability.
The PTFE lined loading arm is specifically engineered for highly corrosive media such as hydrochloric acid, sodium hypochlorite, and dilute sulfuric acid. All wetted components, including pipelines and rotary joints, are protected with fluoropolymer (PTFE) lining to fully isolate metal parts from chemical attack. This design can extend equipment service life by 3–5 times compared with standard carbon steel systems, making it a reliable solution for corrosion resistant loading arm systems and chemical transfer applications.
All fluid contact surfaces, including inner pipes and rotary connection areas, adopt full PTFE lining technology. This ensures zero direct contact between corrosive media and structural metals, significantly reducing leakage risk and maintenance frequency. The system maintains stable performance even under continuous chemical exposure, making it ideal for PTFE lined loading arm systems used in chemical plants, storage terminals, and industrial fluid handling operations.
Each loading arm is custom-designed based on actual site layout and operating requirements, ensuring compatibility with various tank truck inlet positions within the working envelope. This flexibility improves loading efficiency and reduces alignment time. The system supports different structural configurations, making it suitable for customized loading arm solutions in chemical logistics and hazardous liquid transfer environments where adaptability is critical.
The PTFE lined loading arm is equipped with a mechanical balance system and locking mechanism, allowing smooth vertical and horizontal movement. Operators can position and secure the arm with minimal effort, improving safety and reducing labor intensity. In practical applications, operator workload can be reduced by up to 40%, making it highly efficient for industrial chemical loading systems requiring frequent and repetitive operations.
The system can be equipped with vapor recovery caps, electrostatic grounding alarms, and liquid level monitoring systems to enhance operational safety and environmental compliance. These features help minimize chemical emissions and reduce accident risks during loading operations. This makes it suitable for modern chemical loading arm systems that must meet strict environmental and industrial safety standards.
The PTFE lined loading arm supports optional automation modules such as liquid level sensors, position switches, and pneumatic or hydraulic drive systems. These upgrades enable semi-automatic or fully automated operation, improving efficiency and consistency. It is widely used in advanced automated loading arm systems for chemical processing, storage terminals, and hazardous liquid logistics.
